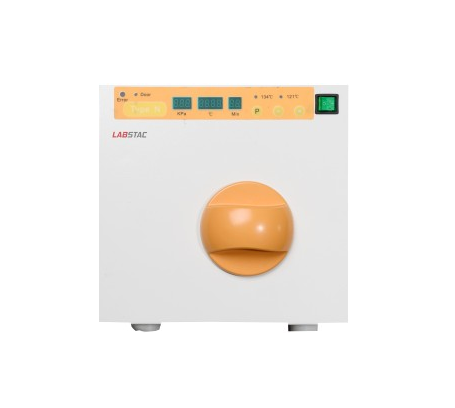

Capacity: 18 L
Sterilization Temperature: 121°C, 134°C
Sterilization Time: 4 min - 20 min
Times of Sterilization after filled up: Automatic water filling
Working Pressure: 0.11- 0.21 MPa
Maximum Working Pressure: 0.21 - 0.23 MPa
Pressure Sensor: Yes
Precision of Pressure Sensor: 0.1 KPA
Precision of Temperature Sensor: 0.1°C
Water supply system: Manual
Quantity of clean water tank: 1
Quantity of waste water tank: 1
Water Tank: Water fed from outside tank
Quantity of steam generator: 1
Water Filter: 1
Vapour Filter: Yes
Temperature Sensor: Yes
Automatic protection when overpressure: Yes
Automatic protection when overtemperature: Yes
Bacteria Filter: 1
Fuse: 2
Power Cable: 1
Lock system of door: Mechanic + Electrical lockers
Screen size: 2.5 x 2 cm, 3.8x 2 cm
Life span: 5 years
Hot air exhaust system: Copper condenser, fan
121°C Solid: Yes
121°C Porous: No
121°C Hollow: No
134°C Solid: Yes
134°C Porous: No
134°C Hollow: No
B&D Test: No
Helix Test: No
Vacuum Test: No
Clean Program: No
Prion Program: No
User Define: No
Chamber Dimension: 250x350 mm
Diameter of chamber: 250 mm
Depth of chamber: 350 mm
Overall Dimension (LxWxH): 660x445x390 mm
Packing Size: 720x500X495 mm
Minimum size of table for installation: 460x320 mm
Chamber Material: Stainless Steel
Plug: 3 hole plug
Safety valve: 1
Tray: 3
Handle for tray holder: 1
Tray holder: 1
Instruction manual: 1
Sterilization programs: Yes/No
Weight: 39/48 kg
Wattage: 1700 W
Power: 1700 W
Power Supply: 220 V, 60 Hz
Optional Accessories:
Accessory Code Name Unit
AX1022 Ring 1
AX1023 Inner temperature sensor 1
AX1024 pt1000 1
AX1025 pt1000 (packing with plastic) 1
AX1026 Heating circle 1
AX1027 Steam generator cover 1Set
AX1028 Steam generator stand 1Set
AX1029 Steam generator spring type gasket 1
AX1030 Heating Rod 3
AX1031 Water Pump 1
AX1032 Vacuum Pump 1
AX1033 Fuse Wire 2
AX1034 Normally closed solenoid valve 3
AX1035 Three-way solenoid valve 2
AX1036 Germ-tight filter 1
AX1037 Voltage transformer 1
AX1038 switch 1
AX1039 Bleeder valve 2
AX1040 Fan 1
AX1041 Printer 1
AX1042 Control panel 1set
AX1043 LED 1set
AX1044 Big Pipe 1Kg
AX1045 Small Pipe 1kg
AX1046 Liquid sensor 3
AX1047 Electromagnet 1
