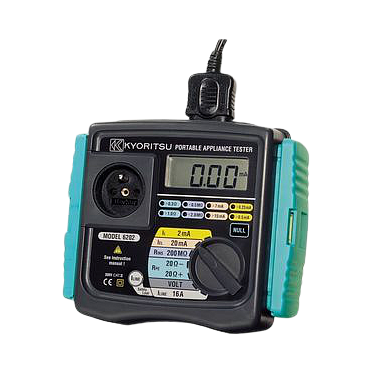

Product image

KYORITSU 6202 Portable Appliance Testers

ManufacturerKYORITSU(View more products from this manufacturer)

Model6202

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

+ Directive
+ Measuring communication circuit, measuring circuit, measuring soil resistivity ...
+ Measuring range: 20/2000Ω; 25A (20Ω range) 15mA (2000Ω range), DC-500V
570V DC
+ Parameters : 0~19.99Ω ; 0~19.99/199.9MΩ ;10mΩ/10:Ω/100:ΩV; >500V DC(+50%/-0%)

The Model 6202 is a hand-held portable appliance tester, performing four functions to ensure the Safety of Class I, Class II and Class III 230V appliances. And also can measure the mains voltage.
Readings are displayed on a large liquid crystal display (LCD) below which are eight LEDs which unambiguously display a pass or fail indication for threshold values dictated by DIN VDE 0701/0702

6202

This instrument is suitable for performing tests as required by the following standards.
DIN VDE 0701-1 (240):2000	Repairing, modification and testing of electrical equipment
DIN VDE 0702 : 2004	Periodic inspection for electrical equipment



		RPE 20Ω+ / 20Ω- Protective Conductor Resistance Test



					Measuring range				0 ~ 19.99Ω



					Resolution of measurement				10mΩ



					Short circuit current				200 ~ 250mA DC



					Open circuit voltage				±5.0±0.4V DC



					Accuracy				±2%rdg±3dgt



		RINS 200MΩ Insulation Resistance



					Measuring range				0 ~ 19.99 / 199.9MΩ (2ranges auto)



					Resolution of measurement				10kΩ / 100kΩV



					Rated voltage				>500V DC (+50% / -0%)



					Rated current				>1mA



					Short circuit current				14mA (max.)



					Accuracy				±2%rdg±3dgt



		IEL 20mA Equivalent Leakage Current



					Measuring range
