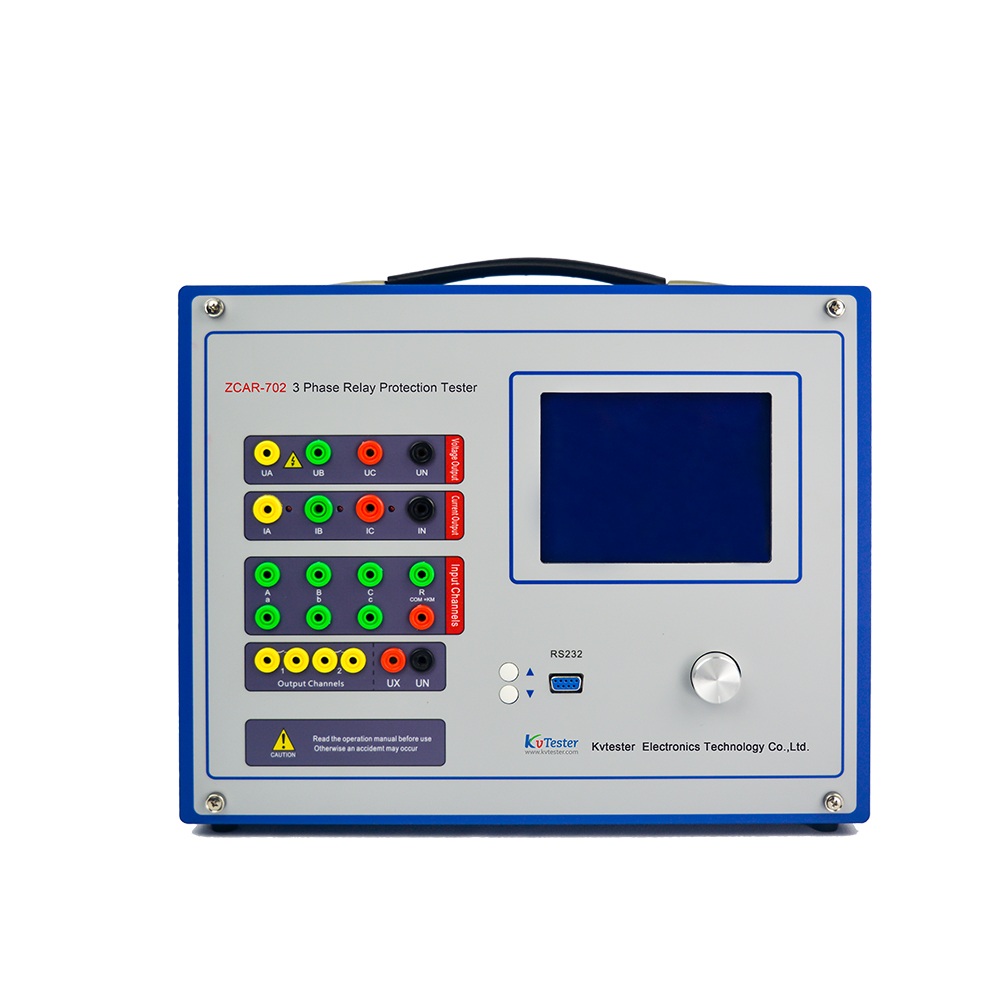

Product Parameters:
Alternating current output
Output accuracy 0.5 magnitude
Phase current output (effective value) 0~40A
Three parallel phase current output (effective value) 0~120A
Phase current value with long time under permission (effective value) 10A
Phase current maximum power output 400VA
Three parallel phase current maximum power output 1000VA
Three parallel phase current maximum work time 10s
Frequency range (base wave) 20~1000Hz
Harmonic frequency number 1~20 time
Direct current output
Output accuracy 0.5 magnitude
Current output 0~±10A/each phase, 0~±30A/every three parallel
Maximum output of load voltage 20V
Alternating voltage output
Output accuracy 0.5 magnitude
Phase voltage output (RMS) 0~120V
Line voltage output (RMS) 0~240V
Phase voltage/line voltage power output 80VA/100VA
Frequency range (base wave) 20~1000Hz
Harmonic frequency number 1~20 times
Direct voltage output
Output accuracy 0.5 magnitude
Phase voltage output amplitude 0~+160V
Line voltage output amplitude 0~+320V
Phase voltage/line voltage power output 70VA/140VA
The switch quantity and time measurement
Switch parameters input (7ways)
Empty contact: 1~20mA, 24v
Power contact access: "0": 0~+6V; "1": +11V~+250V
Switch parameters output (2couples)
DC: 220V/0.2A
AC: 220V/0.5A
Time measurement
Measuring range: 0.1ms~9999s
Measuring accuracy: 0.1ms
Volume and weight
Appearance and size 400mm×300mm×180mm
Weight of a single machine 22kg
Working environment
Supply power AC 220V±10%,50/60Hz
Environmental temperature -10℃~+50℃
