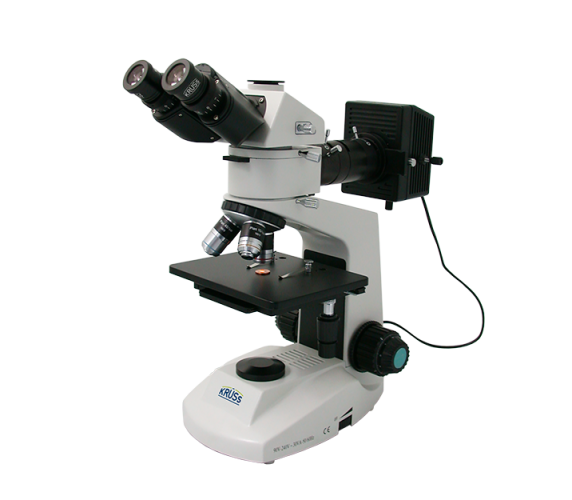

KRUSS MBL3300 Metallurgical incident light microscope

Optical Head: Inclined optical head, Symmetrical eye distance adjustment (55 – 75 mm), Dioptre compensation with scale

Objective Revolver: 3-times

Objectives: Planachromatic:

4x/NA 0.10 // object field Ø: 4.5 mm

10x/NA 0.25 // object field Ø: 1.8 mm

40x/NA 0.65 // object field Ø: 0.45 mm

Eyepieces: 10x plane eyepiece; Field of view: 18

Condenser: Double lens ABBE Condenser, NA 1.25, with centering and height adjustment

Illumination: 6 V 30 W adjustable

Magnification: 40 to 400

Microscope Stage: XY Stage, moving range 120x80x mm

Stand: 6 V 30 W adjustable objectives

Maximum Object Height:

24 mm with 4x/NA 0.10

23 mm with 10x/NA 0.25

21 mm with 40x/NA 0.65

Further Equipment: Iris diaphragm; Filter holder; Blue filter; Green filter (optional)

Power Supply: 90–240 V
