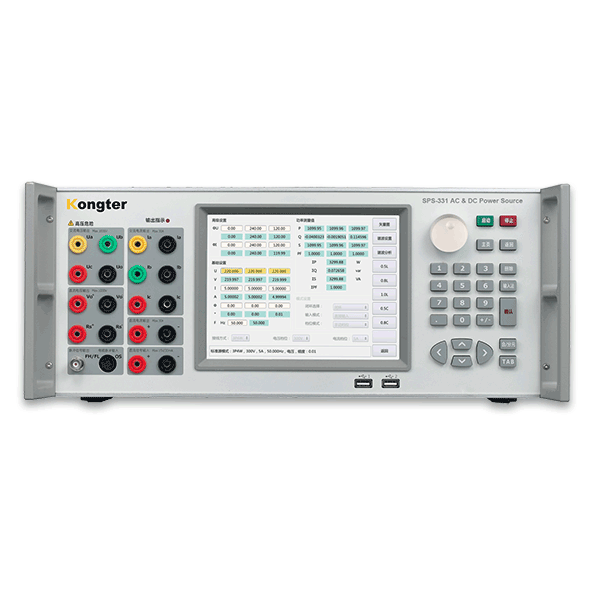

Kongter SPS-331C AC & DC Power Source (AC 0-792V, DC 0-1100V, Class: 0.05)

AC large voltage output

Range: (Phase A) 30V, 100V, 300V, 660V, 1000V

Phase B, C: 30V, 100V, 300V, 660V

Stability: 0.005%/1min (0.05 class)

Distortion: ≤0.1% (Non-capacitive load)

Output maximum load: 25VA each phase (resistive load)

Accuracy: 0.05%RG

AC small voltage output

Range: phase A: 75mV, 300mV, 750mV, 3V, 7.5V

Output maximum load: ≥ 25mA

AC current output

Range: phase A: 500uA, 2mA, 10mA, 50mA, 0.2A, 0.5A, 2A, 5A, 10A, 30A\

Phase B, C: 0.2A, 0.5A, 2A, 5A, 10A, 30A

Output maximum load: 25VA each phase (resistive load)

Power output

Power output stability: 0.01%/2min

Active, reactive power measurement accuracy: 0.05%RG

Phase angle output

Output adjustment range: 0°~360°

Output adjustment resolution: 10°, 1°, 0.1°, or 0.01°

Resolution: 0.01°

Accuracy: 0.05°

Power factor output

Adjustment range: -1 ~ 0 ~ +1

Measurement resolution: 0.0001

Accuracy: 0.0005

Frequency output

Adjustment range: 40Hz ~70Hz

Output adjustment resolution: 1Hz, 0.1Hz, 0.01Hz, 0.001Hz for option

Resolution: 0.001Hz

Accuracy: 0.001 Hz

DC voltage output

Range (4 lines): 100mV, 300 mV, 1V, 5V, 20V, 100V, 300V, 1000V

Ripple amplitude: ≤1%RG (Non-capacitive load)

Output load: 20V and above ranges: ≥10mA; 5V and below ranges: ≥25mA

Accuracy: 0.05%RG

DC current output

Range: 1mA, 3mA, 10mA, 30mA, 100mA, 300mA, 1A, 5A, 10A, 15A, 25A

Accuracy: 10mA and above ranges: 0.05%RG

General parameters

Power supply: 90~265VAC/DC

Frequency: 50Hz~60Hz

Consumption: 50VA~1000VA

Environment condition: 20℃~30℃，relative humidity≤85%

Storage environment: -20℃~50℃

Size: 600mm (L) × 440mm (W) × 176mm (H)

Weight: 28Kg
