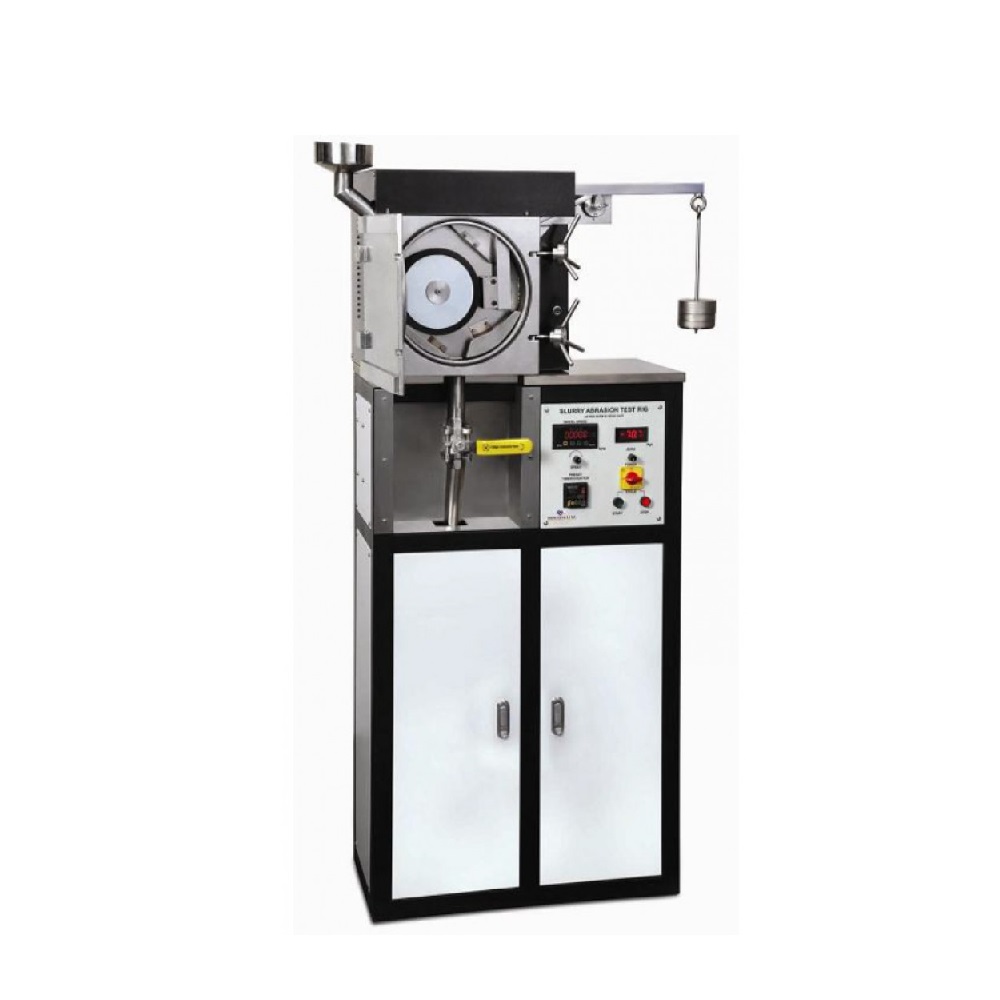

Koehler K92800 Slurry Abrasion Tester (100 to 250rpm)

- Covers the laboratory procedures for determining the resistance of metallic materials to scratching abrasion.

- The test area is submerged in wet abrasive slurry.

Specifications

- Conforms to the specifications of: ASTM G105, B611

- Abrasive slurry: Mixture of alumina (1.5kg) and water (0.94kg)

- Wheel speed: 100 to 250 rpm continuously variable

- Test load: G105: 100N to 300N

B611: 100N to 200N

- Wheel diameter: G105: 178mmx12.7mm

B611: 169mmx12.7mm

- Neoprene rubber wheel shore hardness: 50, 60, and 70 ±2

- Revolution controller: Microprocessor based digital preset counter 1 rev to 9999 revs

Electrical requirements: 440V, 50Hz, 15A, 3 Phase

Included accessories

- Slurry tank

- Slurry connection container

- Loading arm with lifting cam and easily changeable dead weights

- Neoprene rubber wheels

Additional accessories

- K92800-1 Test Wheel, 7” dia, 68-71 Shore A

- K92800-2 Test Wheel, 7” dia, 58-61 Shore A

- K92800-3 Test Wheel, 7” dia, 48-52 Shore A

- K92800-4 Wheel Dressing Tool K92800-5 Replacement Nozzle

Datasheet
