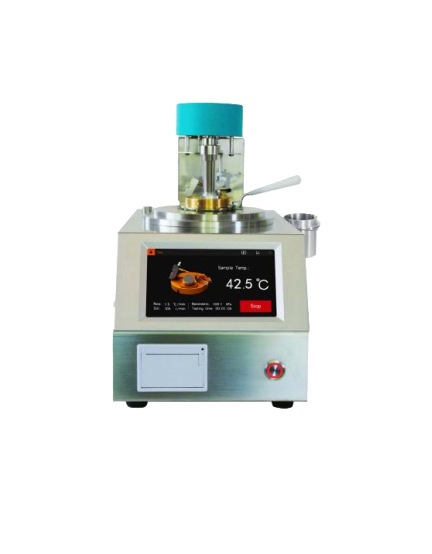

Koehler K87760 Automatic Tag Flash Point Tester (10°C ~ 130°C, -30°C ~ 130°C)

Measurement Range: 10°C to 130°C (with internal refrigeration): -30°C to 130°C (with external refrigeration)

Temperature Sensor: Integrated wireless temperature sensor

Sensor Resolution: 0.1 °C

Measurement Accuracy: ±0.1 °C

Ignition Method: Selectable between gas and electronic

Flash Fire Detection Method: Thermocouple detection

Data Record Storage: 2000 Groups

Cooling Method: Built-in Peltier cooling system (external cooling bath optional)

Minimum Cooling Temperature: -35°C (requires external cooling bath)

Blind Sample Test: Supports unknown sample pretest

Alarm/Prompt Function: Audible beep at the end of the test; automatic error message display

Data Output: Built-in micro thermal printer; results transferable to LIMS

Communication Interface: RJ45 Ethernet, RS232

Electrical Requirements: 110-220V 50/60 Hz

Dimensions lxwxh, in.(cm): 18.7 x 9.06 x 14.96 (47.5 x 23.0 x 38.0)

Net Weight: 38.58 lbs (17.5 kg)
