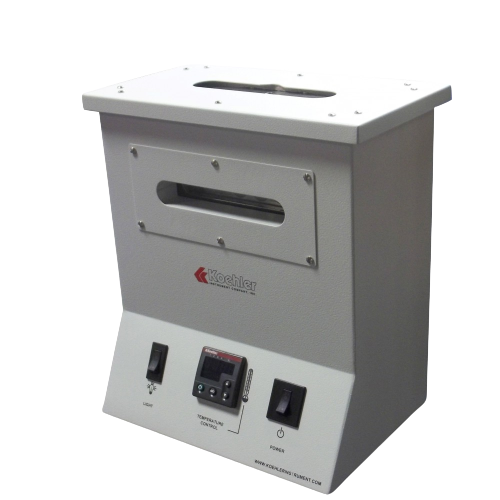

Tests dropping points of lubricating greases at temperatures of up to 400°C (752°F).
Specifications
-Conforms to the specifications of: ASTM D2265, ASTM D4950
- Maximum temperature: 400°C (752°F)
- Control stability: ±0.5°C (±1°F)
Electrical requirements: 220-240V 50/60Hz, Single Phase, 3.4A
Dimensions
- lxwxh,in.(cm): 11 1⁄2x9x14 (29x23x36)
- Net weight: 24 lbs (10.9kg)
Shipping information
- Shipping weight: 32 lbs (14.5kg)
- Dimensions: 24x20x18 in. (61.0x50.8x45.7cm)
Included accessories
- Dropping Point Assemblies (6) consisting of: test tube, grease cup, thermometer clamp, upper and lower bushings and bushing support ring
- Thermometer Depth Gauge
- Polished Metal Rod
- Cup Support
Additional accessories
- 250-000-03F ASTM 3F Thermometer - Range: 20 to 760°F
- 250-000-03C ASTM 3C Thermometer - Range: –5 to +400°C
- K194E7 Cup Plug Gauge - Per Fig. 1, ASTM D566 and Fig. 1-E-7, ASTM D2265
- K194EA Grease Cup
- K194EB Test Tube, 13x100mm
- K194EC Cup Support
- K194E1 Thermometer Clamp
- K194E2 Upper Bushing
- K194E3 Lower Bushing
- K194E4 Bushing Support Ring
- K194E5 Thermometer Depth Gauge
- K194E6 Polished Metal Rod
