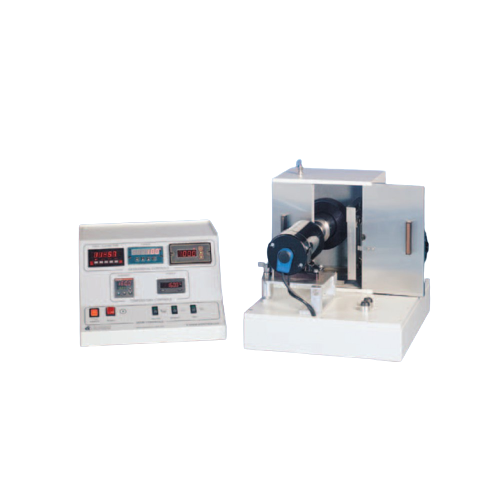

Evaluates the high temperature stability of automotive wheel bearing greases in a modified automotive front wheel hub-spindle-bearings assembly.
Specifications
- Conforms to the specifications of: ASTM D3527, D4290, D4950
- Digital controls and displays:
+ Timer: on/off cycle and real time
+ Chamber temperature: °C
+ Spindle temperature: °C
- Motor rpm: 0-1725rpm
- Motor torque: current draw
- Elapsed time: 9999.9 hr.
- Maximum temperature: 177°C (350°F)
Electrical requirements: 220-240V 50Hz, Single Phase, 7A
Dimensions
- lxwxh,in.(cm): Test unit: 16x20x15 3⁄4 (41x51x40)
Control unit: 16x14x16 (41x36x41)
- Net weight: 145 lbs (65.8kg)
Shipping information
- Shipping weight: 264 lbs (199.7kg)
- Dimensions: 30x24x53 in. (76.2x61.0x134.6cm)
Included accessories
- Thermocouples (2)
- Thermometer holder
- Bearings (1set)
- Grease Packer Assembly
- Bearing Installation/Removal Tools:
+ bearing installer, small and large
+ bearing cup removers, bearing cup installer,
+ bearing puller and spindle wrenches (pins)
Additional accessories
- 250-000-42C ASTM 42C Thermometer range: 95 to 255°C
- 289-004-001 Inboard Bearing Set - Includes LM67048 Cone and LM67010 Cup
- 289-004-002 Outboard Bearing Set - Includes LM11949 Cone and LM11910 Cup
