Dimensions:
Hand-held unit: approx. 150mm x 88mm x 35mm
Shoe electrode: approx. 430mm x 500mm x 10mm
Weight:
Hand-held unit: approx. 250g
Shoe electrode: approx. 2kg
Power supply:
4 x Mignon (AA) in the hand-held unit
optional: Wall wart WST 100 NT
Display: 1 LED 8mm green, 6 LED 5mm red, 1 buzzer
Relay contact: potential-free shutter 60V 2A
Measuring principle: Voltage current measuring principle, therefor constant measuring voltage
Measuring voltage: 20V±5%
Connection: All connections over 9-pin Sub-D plug
Tresholds:
The tresholds are seperately adjustable for the wrist strap- and the shoe test.
Lower treshold from 0 to 2MΩ
upper treshold from 0 to 200MΩ
Manual
Datasheet
Features

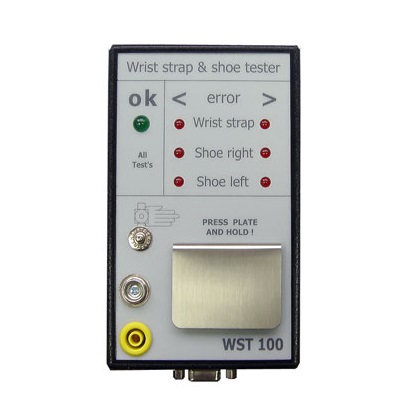

The WST100 provides a function test for electrostatic wrist straps and conductive footwear. Before you get access to ESD-secured areas the ESD precautions like wrist straps and conductive footwear should be tested on correct function.
The WST100 is a reliable and advantageous solution for this. The appliance is portable and through its battery power employable everywhere.
The setting of the tresholds and the calibration can be done very simply by the customer himself.
As a specialty the device has included a statistical error memory, which allows a statistic evaluation of the errors.
