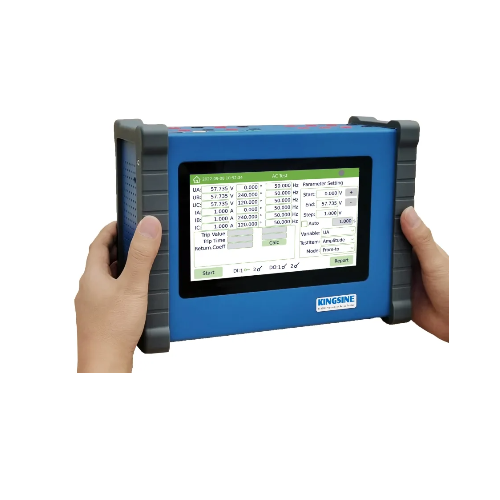

Kingsine KFA300 Mini Handheld Protection Relay Tester

Voltage Outputs:

Output Range & Power: 3×265 V ac (L-N)

+ 22.5 VA max each@265V

+ 21 VA max each@200V

+ 12.5 VA max each@100V

+ 7 VA max each@63.5V

+ 6.65 VA max each@57.7V

+ 1.1 VA max each@10V

Accuracy: 0~1V：±2mV

1~VMax：±（0.02%Rd+0.03Rg） Guar

Resolution: 0.001V

Distortion: <0.05%Typ. / <0.1% Guar.

Current Outputs

Output Range & Power: 3×10A ac (L-N)

+ 27 VA max each@10A

+ 25.5 VA max each@9A

+ 24 VA max@8A

+ 17 VA max each@5A

+ 3.88VAmax each@1A

Accuracy: 0~0.2A：±2mA

0.2~IMax： ±（0.02%Rd+0.03Rg） Guar.

Resolution: 0.001A

Frequency & Phase Angle

Frequency Range:DC~1KHz

Frequency Accuracy:±5ppm

Frequency Resolution:0.001 Hz

Phase Range:0°~360°

Phase Accuracy:<0.1° Typ. / <0.2° Guar. 50/60Hz

Phase Resolution:0.001°

Aux. DC Voltage Source (Battery simulator)

Range: 24V（0.9A）、48V（0.6A）Switchable；

110V or 220V output（/Option）；

Other type can be customized；

Accuracy: 5%Rg Guar.

Binary Input

Quantity: 2pairs

Voltage range: dry contact, input voltage DC 0~300V

Fast Binary Output

Quantity: 2pairs

Circuit Breaker Simulate: Can be define as Open or Close status

Contact performance: Open the dry contact output using opto-coupler relay, the on-resistance is ≤6Ω, and the shut-off withstand voltage is ≤DC350V

SOE test function: the time error between the two outputs is ≤0.2ms, and the SOE resolution test can be performed

Communication

USB2.0 : 1 USB socket, used for software upgrade

Built-in Internal Battery

Battery capacity: 90WH

Work time: standby working time is not less than 8 hours；

5A current output can work for not less than 1 hour;

Charge time: Fast charging, charging time is less than 1 hour

AC/DC Charger

Input: 100~240Vac，50/60Hz，Max2.5A

Output: 33.6Vdc，5.0A（168W）

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -5℃~50℃

Humidity: <85%RH, non-condensing

Others

Grounding Terminal:4mm banana socket

Weight: Approximately35 Kg

Dimensions(W x D x H):252x95x185(mm)
