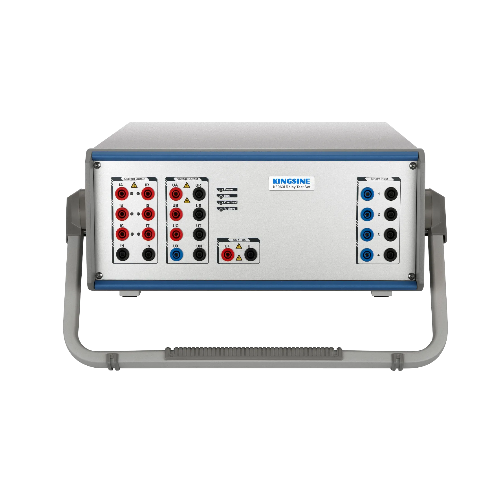

Voltage Outputs:
Output Range & Power:
+ 4×310 V ac (L-N): 124 VA max each
+ 3×350 V dc (L-N): 140 W max each
Accuracy: ±2mV @ <2V ac
<0.015%Rd+0.005Rg Typ. @ 2~310V ac
<0.04%Rd+0.01Rg Guar. @ 2~310V ac
±10mV @ <5V dc
±0.5% @ ≥5V dc
Voltage Range
+ Range I: 30V
+ Range II: 310V
+ Automatic Range
DC Offset: <10mV Typ./ <60mV Guar
Resolution: 1mV
Distortion: <0.015%Typ. / <0.05% Guar.
Current Outputs
Output Range & Power:
+ 6×35A ac (L-N): 450 VA max each
+ 3×70A ac (2L-N): 850 VA max each
+ 1×100A ac (6L-N): 1200 VA max
+ 3×20A dc (L-N): 300W max each
Accuracy: ±1mA @ <0.5A ac
<0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac
<0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac
±5mA @ <1A dc
±0.5% @ ≥1A dc
Current Range:
+ Range I: 3A
+ Range II: 35A
+ Automatic Range
DC Offset: <3mA Typ./ <10mA Guar
Resolution: 1mA
Distortion: <0.025%Typ. / <0.07% Guar.
Frequency & Phase Angle
Frequency Range:DC~1KHz, 3KHz transient
Frequency Accuracy:±0.5ppm
Frequency Resolution:0.001 Hz
Phase Range:-360°~360°
Phase Accuracy:<0.02° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution:0.001°
Aux. DC Voltage Source (Battery simulator)
Range:0~350V @ 140W max
Accuracy:0.5%Rg Guar.
Binary Input
Quantity8pairs
Typewet/dry, measurement
Threshold10~600Vdc or potential free, Programmable
Time resolution10us
Sampling Rate10KHz
Debounce time0~25ms (Software Controlled)
Time rangeInfinite
Time errors±1ms @ ≤1s, ±0.1% @ >1s
Galvanic isolation Isolated each pairs
Binary Output (Relay Type)
Quantity4pairs
TypePotential free relay contacts, software controlled
Break Capacity ACVmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DCVmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity4pairs
Type:Open-collector, Combination type female
Break Capacity DC5~15Vdc / 5mA, 10mA max
Response time:100us
Synchronization
Synchronization Mode GPS, SMA type antenna connector
Power Supply & Environment
Nominal Input Voltage: 100V/220/230V ac, Appointed
Permissible Input Voltage85~264Vac, 125~350VDC, auto-protective
Nominal Frequency50/60Hz
Permissible Frequency45Hz~65Hz
Power Consumption1500 VA max
Connection TypeStandard AC socket 60320
Operating Temperature-10℃~55℃
Storage Temperature-20℃~70℃
Humidity<95%RH, non-condensing
Others
PC Connection:RJ45 Ethernet, 10/100M
Grounding Terminal:4mm banana socket
Weight:17.5 Kg
Dimensions(W x D x H):468×375×164(mm)
