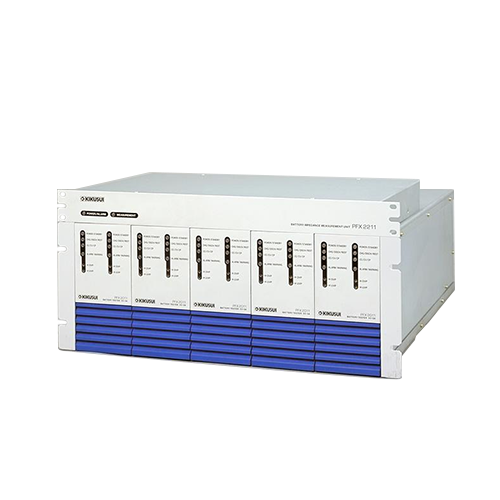

KIKUSUI PFX2011 Charging/Discharging Power Supply Unit (5V; 5A; 25W)

Number of output channels: 2

Charging current range:

0.0 mA ~ 5000.0 mA (high range)

0.00 mA ~ 500.00 mA (low range)

Charging voltage range: 0.0000 V ~ 5.0000 V

Charging mode: CC/CC-CV/PWM pulse

Discharging current range:

0.0 mA ~ 5000.0 mA (high range)

0.00 mA ~ 500.00 mA (low range)

Discharging voltage range: –0.5000 V ~ 5.0000 V

Maximum charging/discharging power: 25.00 W

Discharging mode: CC/CP/CC8-value pulse

Measurement parameters: Voltage/current/capacity/electric energy/temperature/high voltage/low voltage

Power consumption:

At rated output: 400 VA Max

With no load: 60 VA Max
