Source
DC Ratings
• Voltage: 0 to 800 V
• Current: 0 to ±48 A
• Power: 0 to ± 12 kW
Output Ripple And Noise
• CV peak-to-peak: ≤ 1,000 mVp-p
• CV rms: ≤ 160 mVrms
Load Effect (Load Regulation)
• Voltage: 160 mV
• Current: 64 mA
Programming Accuracy
• Voltage: 0.03% + 240 mV
• Current: 0.1% + 48 mA
• Power: 0.5% + 60 W
Measurement Accuracy
• Voltage: 0.03% + 240 mV
• Current: 0.1% + 48 mA
• Power: 0.5% + 60 W
Load Transient Recovery Time
• Recovery time: ≤ 1 ms
• Settling band: 8 V
Load
DC Ratings
• Voltage: 0 to 800 V
• Current: 0 to 48 A
• Power: 0 to ± 12 kW
Output Ripple And Noise: -
Load Effect (Load Regulation)
• Voltage: 160 mV
• Current: 64 mA
Programming Accuracy
• Voltage: 0.03% + 240 mV
• Current: 0.1% + 48 mA
• Power: 0.5% + 60 W
Measurement Accuracy
• Voltage: 0.03% + 240 mV
• Current: 0.1% + 48 mA
• Power: 0.5% + 60 W
Load Transient Recovery Time: _
*For detailed specifications, please refer to the Datasheet.

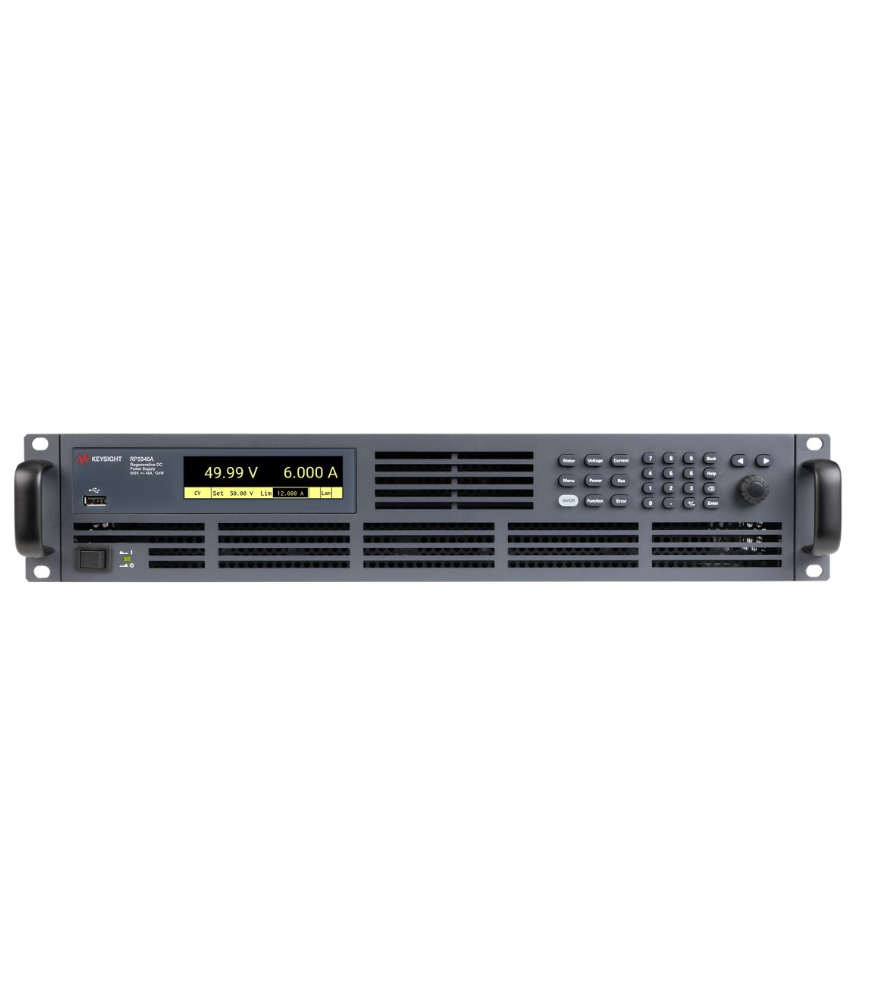

*Images for illustration purposes only.
