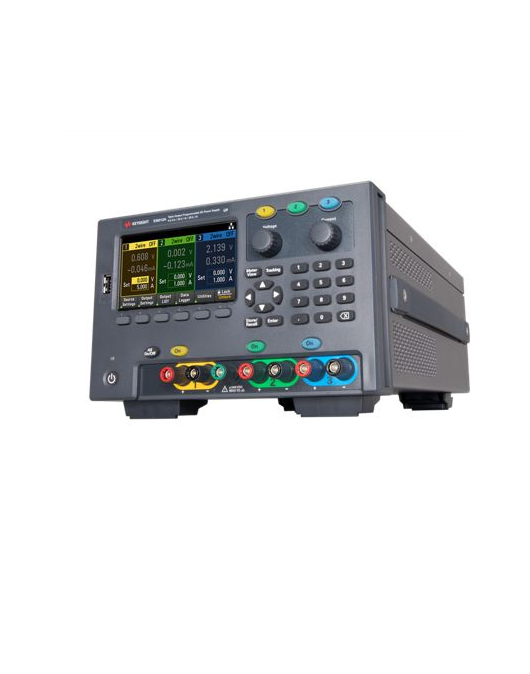

KEYSIGHT E36312A Triple Output Power Supply (Includes calibration certificate E36312A-UK6 and GPIB interface port E36312A-GPB)

Power output: 80 W

Output Rating:

Output 1: 0 to 6 V, 0 to 5 A

Output 2: 0 to 25 V, 0 to 1 A

Output 3: 0 to 25 V, 0 to 1 A

Ripple & Noise (20 Hz to 20 MHz)

Normal Mode Voltage: <350 µVrms/ 2 mV p-p

Normal mode current: <2 mA rms, <1 mArms, <500 µA rms

Overvoltage protection (OVP): 0.20% +0.1V & 0.20% +0.4 V

Command processing time: < 10 ms

Accuracy 12 months (23 ºC ± 5 ºC)

Current 0.04% +3 mA & 0.04% +2 mA

Voltage 0.03% +2 mV & 0.03% +5 mV

AC input: AC 100- 230 V, 250 VA

includes over voltage, over current, and over temperature protection

Three independent outputs in one instrument saves maintenance cost and bench space

Display: 4.3-inch LCD color show the voltage and current of all three channels at the same time

Included accessories: Power cord, output voltage wire, instruction manual

Datasheet
