KEM HM 022 U Turbine Flow Meters (15 - 300 L/min) | EMIN.CO.ID

Turbine Flow Meters
KEM HM 022 U Turbine Flow Meters (15 - 300 L/min)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

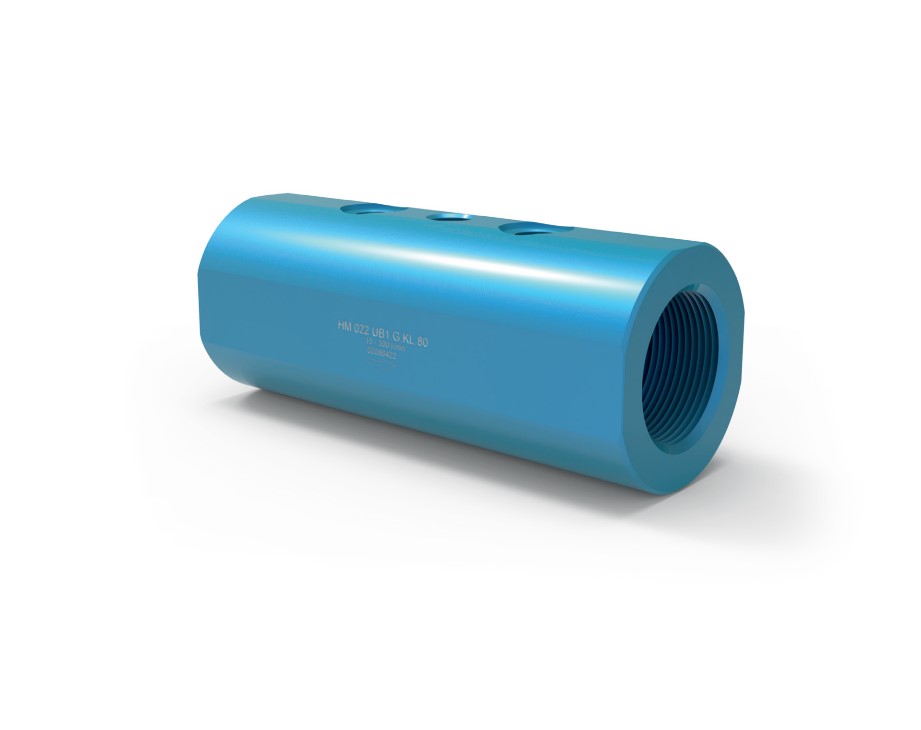

Product image

KEM HM 022 U Turbine Flow Meters (15 - 300 L/min)

ManufacturerKEM(View more products from this manufacturer)

ModelHM 022 U

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Technical Data – Sizes

HM types: HM 022 U

Measuring Range (l/min): 15 - 300 L/min

K-Factor (pulses/l): 605 (pulses/l)

Max. Pressure: 420 [6,090] (bar/psi)

Max. Frequency (Hz): 800 Hz

Weight: 1.3 kg

Technical Data – General

Measuring Accuracy: ±0.5%

Repeatability: ±0.5 % (under the same condition)

Linearity: ±2.5 % of actual flow

Viscosity Range: 30 mm2/s

Materials

Housing: as per DIN 3.4365 [EN AW-7075]

Inner parts: as per DIN 1.4305 [AISI 303]

Wheels: as per DIN 1.4122 / 1.4104

Bearing: Stainless steel ball bearing

Medium Temperature: -40 °C up to +120 °C [-40 °F up to +248 °F]

Dimensions: See dimensional drawing

Suitable media: According to PED 2014/68/EU Media group according to Article 13 Group 2

See datasheet for choosing suitable configurations!

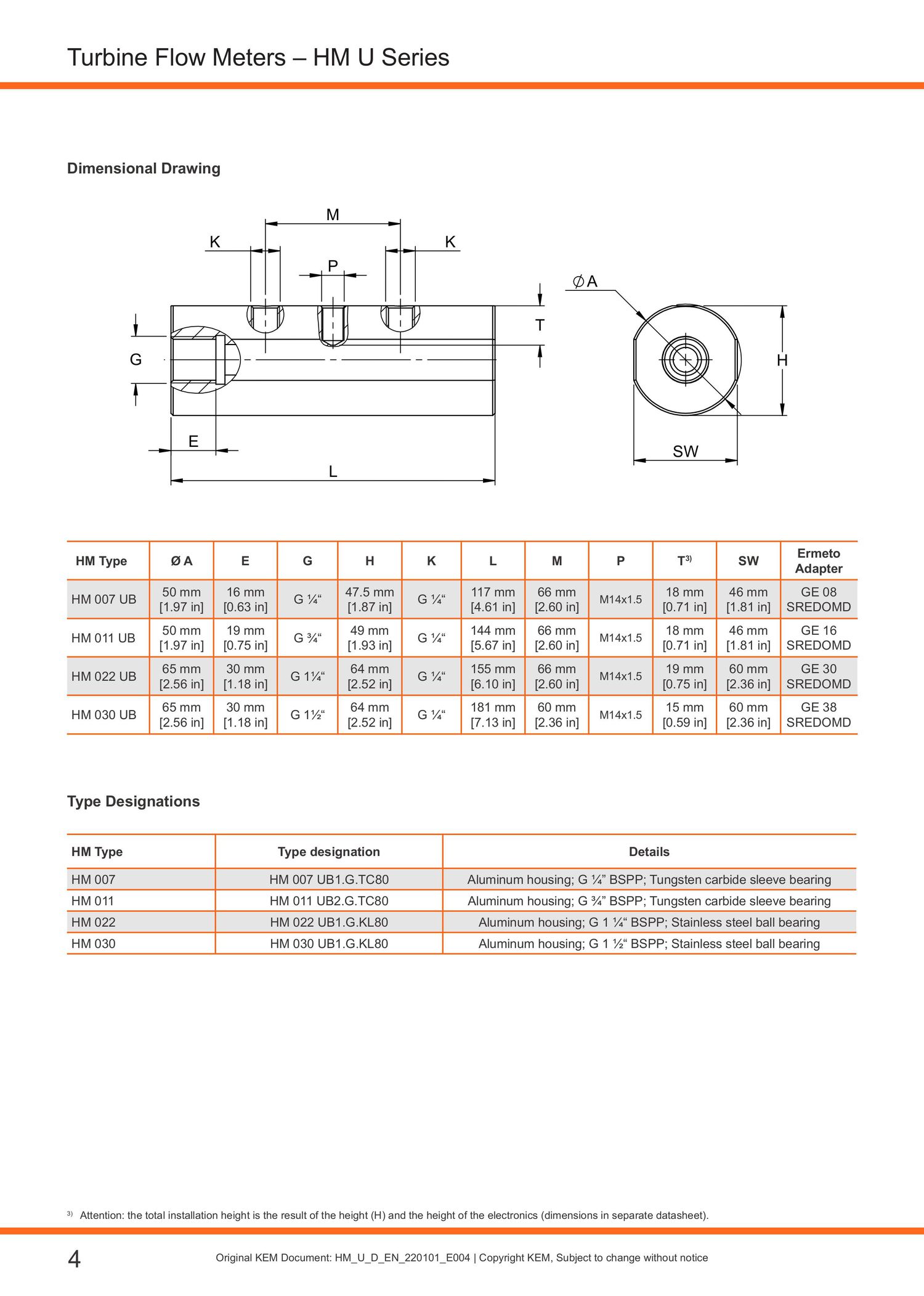

Dimensional Drawing

Datasheet

Manual
