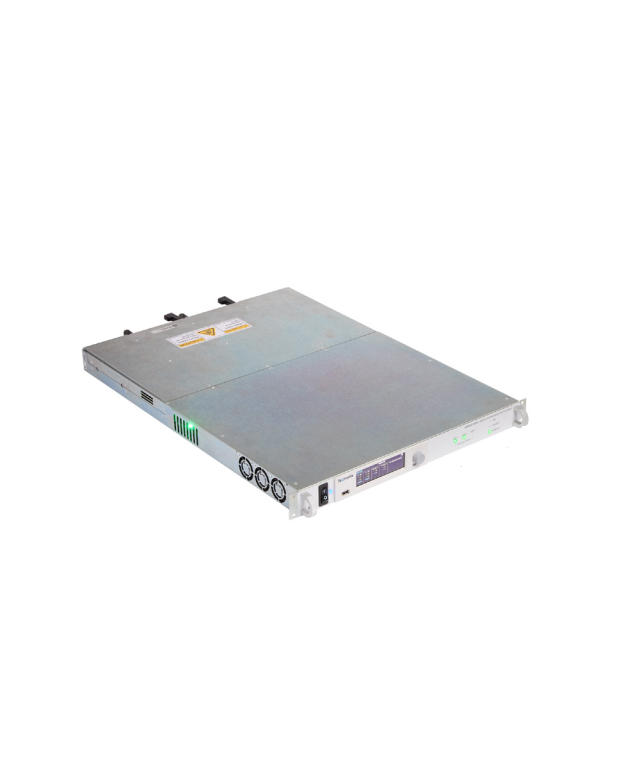

KEITHLEY MP5103 3-Slot Low Profile Modular Mainframe

USB Host (Front Panel):

USB 2.0, Type A, support for flash drives. Support FAT32 & exFAT formats.

Capability: Support Firmware Upgrades

USB Device (Rear Panel): USB 3.0, Type C, USBTMC

Ethernet:

RJ-45 Connector: 10/100/1000BASE-T

IP Configuration: static or DHCP (manual or automatic)

IEEE-488.2: Supports IEEE Std 488.2 common commands and status model topology.

Programming:

Embedded Test Script Processor (TSP) scripting engine is accessible from any host interface:

• Responds to individual instrument control commands.

• Responds to high-speed test scripts comprised of remote commands and test script language (TSL) statements (for example, branching, looping, and math)

• Able to execute high-speed test scripts stored in memory without host intervention.

Real Time Clock: 1 year time frame for data retention

Memory (user scripts only): 256 MB (approximately 4 million lines of code)

Front Panel Display:

Multi-Touch Capacitive Touchscreen

Resolution: 480×128 RGB TFT

Additional Control: Rotary Navigation/Control Knob with Encoder Selection

Security Password Protection: 24 Characters

Triggering:

Application: DIGIO & TSP-Link

Input Level: TTL

Input Transition Timing, Max: < 100 ns

Trigger In to Trigger Out: 0.5 µs

Trigger Timer Accuracy: ±200 ns

Acoustic Noise: Sound Pressure Lp, <70 dB(A), at 1 meter, open air

LXI Compliance: Version 1.6 LXI Device Specification 2023 compliant

Power Supply: 100 to 240 VAC, 50–60 Hz (auto sensing), 1000 VA maximum

EMC: Conforms to European Union EMC Directive.

Safety: Conforms to European Union Low Voltage Directive. NRTL Listed to 61010-1

Environmental: Conforms to European Union RoHS Directive

Dimensions: 1.73 in (44 mm) Height × 19.00 in (483 mm) Width × 24.6 in (624 mm) Depth

Weight: 28 lbs. (12.8 kg)

Environment For indoor use only

Altitude: Maximum 6562 ft (2000 m) above sea level

Operating: 0 °C to 50 °C, Max 70% relative humidity. See module specs for additional operating requirements

Storage: -25 °C to 65 °C

Digital I/O Interface

Connector: 30-pin female Terminal (Samtec TFM Series).

Input/Output Pins:18 Bi-directional I/O.

5V Power Supply Pins: 3x Limited to 600 mA @ >4 V, solid state fuse protected.

Ground Pins: 6x

Digital I/O Pins 1-18

ISINK, max. per pin: 250 mA

ISOURCE, max. per pin: 2.0 mA

Absolute VIN:

5.25 V to –0.25 V

Vext ➔ 5 V to 33 V

VIH Min: 3.7 V

VIL Max: 0.7 V

VOL Max at 5 mA Isink: 0.7 V

VOL Max at Isink max: 2.7 V

 VOH Min, 0.4 mA source: 2.4 V
