Effective length L(mm): 500
Total length L(mm): 600
Input condition : 100V or 200V (Not switchable)50/60Hz
Power consumption(VA): 30
Mass(kg): 13
Required high-voltage power supplytype static eliminator: PAS-704

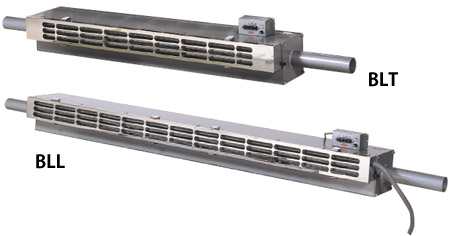

This static eliminator sends the generated ions over a certain distance by using a built-in fan, eliminating static from distantly positioned charged objects. It is an optimal device for eliminating static from winders with changing roll diameters and wide webs. Kasuga Denki Inc. offers a wide lineup of fan type static eliminators that satisfy a range of customer needs. The lineup includes the BLL series – with separate high-voltage power supplies featuring a high-power fan and high-power static elimination – and BLT series units with built-in high-voltage power supply.
These fan type static eliminators are for connecting with separate high-voltage power supplies. With their high-power fan and high-power static elimination, they are best suited for fast-moving, high-voltage charged objects and distantly positioned objects. They have in fact been used for winders in the production process of wide plastic films such as BOPP and BOPET.
| Model | Effective length Le(mm) | Total length L(mm) | Input condition | Power consumption(VA) | Mass(kg) | Required high-voltage power supply |
|---|---|---|---|---|---|---|
| BLL-500 | 500 | 600 | 100V or 200V (Not switchable) 50/60Hz |
30 | 13 | PAS-704 |
| BLL-1500 | 1500 | 1600 | 100V or 200V (Not switchable) 50/60Hz |
110 | 30 | PAS-801 |
| BLL-2500 | 2500 | 2600 | 100V or 200V (Not switchable) 50/60Hz |
160 | 50 | PAS-801 |
| BLL-3500 | 3500 | 3600 | 100V or 200V (Not switchable) 50/60Hz |
250 | 67 | PAS-802 |
| BLL-4500 | 4500 | 4600 | 100V or 200V (Not switchable) 50/60Hz |
310 | 98 | PAS-802 |
| BLL-5500 | 5500 | 5600 | 100V or 200V (Not switchable) 50/60Hz |
380 | 118 | PAS-802 |
| BLL-6500 | 6500 | 6600 | 100V or 200V (Not switchable) 50/60Hz |
450 | 135 | PAS-802 |
These static eliminators come with a built-in high-voltage power supply and high-power fan.High-voltage wiring is not necessary since the power supply is incorporated in the unit. The units are available at lengths up to 3,000 mm. They are effective for high-voltage charged objects such as plastic films and winders that require static elimination from a distance.
| Model | Effective length Le(mm) | Total length L(mm) | Input condition | Power consumption(VA) | Mass(kg) |
|---|---|---|---|---|---|
| BLT-500 | 500 | 700 | 100V or 200V (Not switchable) 50/60Hz |
80 | 19 |
| BLT-1000 | 1000 | 1200 | 100V or 200V (Not switchable) 50/60Hz |
100 | 27 |
| BLT-1500 | 1500 | 1700 | 100V or 200V (Not switchable) 50/60Hz |
150 | 36 |
| BLT-2000 | 2000 | 2200 | 100V or 200V (Not switchable) 50/60Hz |
170 | 44 |
| BLT-2500 | 2500 | 2700 | 100V or 200V (Not switchable) 50/60Hz |
220 | 56 |
| BLT-3000 | 3000 | 3200 | 100V or 200V (Not switchable) 50/60Hz |
240 | 66 |
