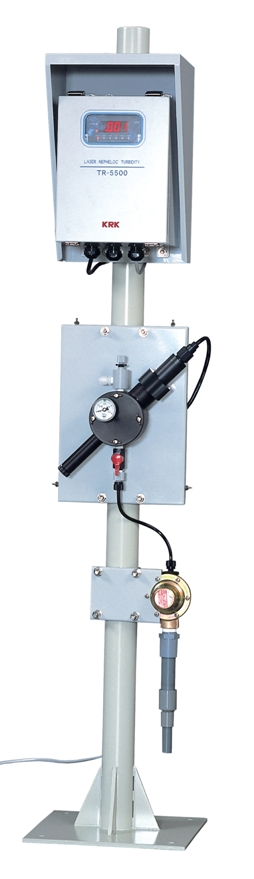

KASAHARA TR-5500 Laser scattered light type turbidity meter (0.000 ~ 1.999)

Measurement method: Laser scattered light measurement method (nephelometry method)

Display method: LED 4-digit digital display

Units of measurement: Selectable between formazine turbidity (NTU) or polystyrene turbidity

Measuring range:

A: 0~2.000 degree/FS (NTU or PSL degree)

B: 0~20.00 degrees/FS (NTU or PSL degrees)

Resolution:

A : 0.001 deg. / F.S: 2 degrees

Output Signal: DC 4 ~ 20 mA (Load resistance 600 Ω or less) / DC 0 ~ 1 V

Reproducibility: ± 2% or less (by standard solution)

Power: AC 85~240V 50/60Hz.

Power Consumption: Approx. 10VA or less

Measured water conditions:

Temperature: 0~40°C (not freezing) Pressure: within 0.1~0.5MPa

Flow rate: 0.05L/min or more

Ambient conditions:

Temperature: -5~40°C

Humidity: 85% RH or less (no condensation) Gas: No corrosive gases

Calibration method: Standard solution or simple calibrator

Weight:

Body: Approx. 4.5 kg

Detector: Approx. 1.5 kg
