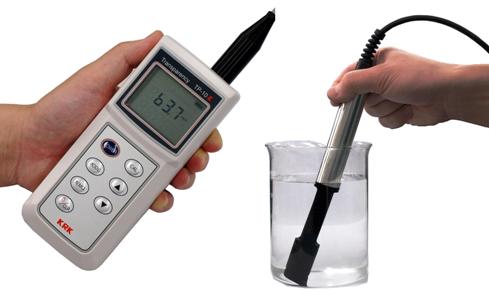

KASAHARA TP-10Z Probe type fluoroscopy sensor (DC4.5V)

Measuring principle: Lens Focused Transmitted Light Measurement

Measurement wavelength: Near-infrared light 880nm

Measuring range: 2．0～200cm

Indication: LCD 4 digits

Minimum resolution: 0．1cm（2．0～99．9cm); 1cm （100～200cm）

Reproducibility: ± 3% (FS) or less (under certain conditions)

Calibration:

(1) Simple calibration filter (2) Equivalent standard solution for calibration

Memory function:Up to 30

Ambient temperature: 0°C~40°C, humidity 95%RH or less

Power supply voltage: DC4.5V (AAA alkaline batteries LR3×3pcs), auto power-off function

External dimensions: 70×170×36（mm）

Weight:Approx. 270g

Standard Configurations: Fluorosis sensor, anti-impact rubber cover, dry battery, case, measuring container (PVC), instruction manual, simple calibration filter
