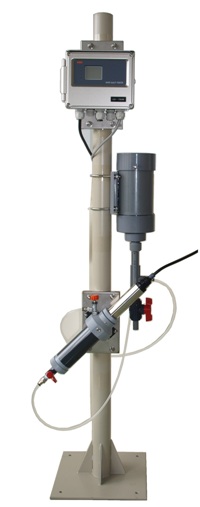

KASAHARA TCR-700W On-site turbidity and chromaticity monitor (0~2000°C)

Measuring principle: Two-wavelength transmitted light measurement method

Indication:

Upper: Turbidity (degrees)

Bottom: Chromaticity (degrees)

Measuring range:

Turbidity: 0~50 degrees (polystyrene turbidity)

Chromaticity: 0~50 degrees (cobalt chloride platinum acid standard)

Resolution:

0.01 degree: range of 11 degrees or less

0.1 degree: range of 11~50 degrees

Reproducibility: ± 2% or less/FS

Power supply voltage: AC85～240V 50／60Hz

Ambient conditions:

Temperature: -5~45°C

Humidity: 85%RH or less

Dimensions & Weight:

Instrument body: 215×170×95, Approx. 1.75kg (with mounting plate)

With hood: 244×196×105, Approx. 2.5kg (with mounting plate)
