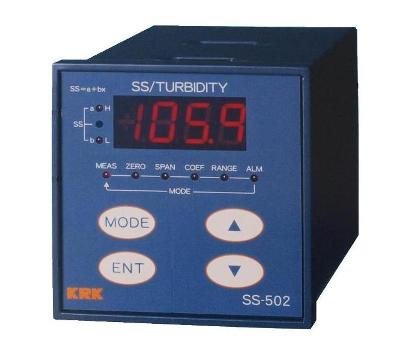

KASAHARA SS-502 SS/Turbidity Monitor (0~500, 0~500mg/L)

Measuring principle: 90° scattered light measurement method

Indication: LED Red 3/1/2 digit

Measuring range:

Turbidity: 0~500 NTU (standard)

SS: 0~500mg/L (converted value)

* Specification: 0 ~ 1000, or 0 ~ 200, or 0 ~ 20

SS converter: Conversion factor (y=a+bx) (x=turbidity, y=SS) can be set.

Minimum resolution:

0.1 degree (100 degrees or less)

1 degree (100~500 degrees)

Span Calibration:

1: After span calibration with formazine turbidity standard solution, set the conversion factor

2: 1 or 2 points calibration of the SS concentration value of the sample water after manual analysis

Ambient conditions: 0~40°C 85%RH or less

Power: AC85～240V 50／60Hz

External dimensions: 96（W）×96（H）×163（D）mm

Weight:Approx. 1.3kg
