Short description

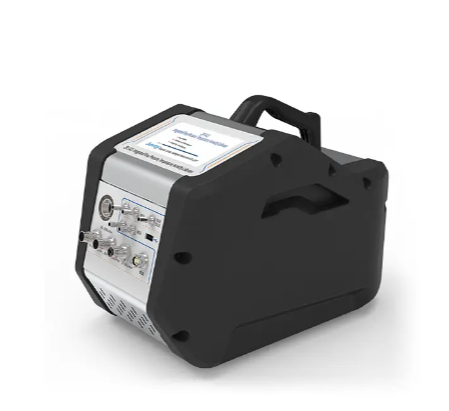

This calibrator is a Portable Comprehensive Calibrator for Gas/ Dust/ VOCs/ Air/ particulate matter Sampler.
Specification
Flowrate:
Range: (10～200)mL/min, Resolution: 0.01mL/min, Accuracy: ±1.0%
Range: (200～2000)mL/min, Resolution: 1mL/min, Accuracy: ±1.0%
Range: (2～20)L/min, Resolution: 0.01L/min, Accuracy: ±1.0%
Range: (20～200)L/min, Resolution: 0.1L/min, Accuracy: ±1.0%
Range: (200～1400)L/min, Resolution: 0.1L/min, Accuracy: ±1.0%
Pressure Calibration Range:
Micro-pressure: Range: (0～5000)kPa, Resolution: 0.1kPa, Accuracy: ≤0.5%F.S.
Gauge pressure: Range: (-60～60)kPa, Resolution: 0.01kPa, Accuracy: ≤0.5%F.S.
Temperature Calibration Range: (0-500)℃
Battery: ＞8h
Data Storage: ＞100000 groups
Power supply: AC(100～240)V, 50/60Hz, DC12V 2A
Size: (L350×W220×H250)mm
Host Weight: About 4kg
Consumption: ≤60W
Introduction
This calibrator is a Portable Comprehensive Calibrator for Gas/ Dust/ VOCs/ Air/ particulate matter Sampler.
Especially for calibrating flowrate, pressure, temperature, humidity of samplers.
Applications
Calibration service companies and service industry
Measurement and control laboratories
Quality assurance
Feature
Built-in orifice flowmeter to calibrate the flowrate of sampler.
Built-in high-precision pressure sensor to calibrate the pressure of sampler.
Built-in high-precision resistance to calibrate the temperature & humidity (wet/dry ball) of sampler.
Meet multi-type flow calibrator.
A:(20~200)L/min
B:(2~20)L/min
C:(200~2000)mL/min
D:(10~200)mL/min
Built-in high-performance lithium battery, power supply time > 8h.
Large data capacity, data can be printed by Bluetooth printer.
Excellent human interaction experience
Automatic conversion of standard flow.
5 inch LCD screen, easy to operate.
