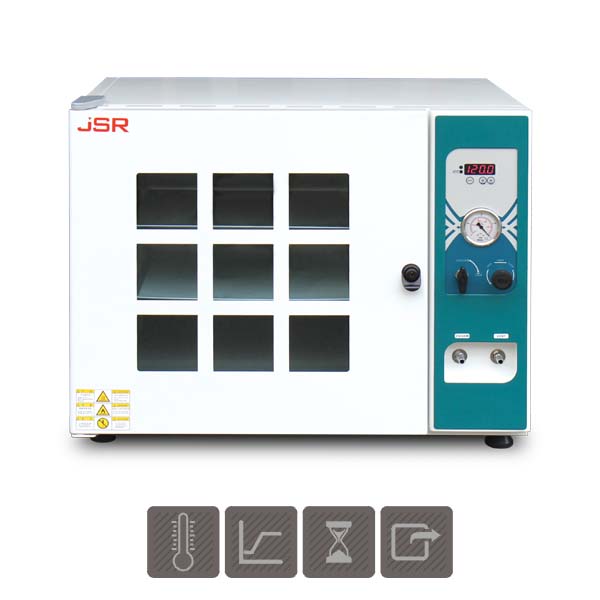

JSR JSVO-60T Vacuum Oven (64L; +10 °C ~ +250 °C)

Dimension Data

Chamber Volume: 64 Liters

Inner Dims. (W x D x H mm): 400 x 400 x 400

Outer Dims. (W x D x H mm): 765 x 575 x 635

Window Dims. (W x H mm): 350 x 350

No. of Shelf included: 2 ea

Shelf Height: 100 mm

Performance Data

Heating System: Heat transduction through aluminum shelf

Temp. Range: Amb. +10 °C ~ +250 °C

Accuracy at 120 °C (shelf surface): ±2.0 °C

Uniformity at 120 °C (shelf surface): ±3.0 °C

Heat up time to 120 °C: 30 min.

Vacuum (Max.): 760 mm Hg

Controller

Processor: Digital Microprocessor PID Temperature Controller

Display: 4 Digit LED Display

Temp. Calibration: Built-in Temperature Calibration

Auto-tuning: Built-in Auto-tuning

Temp. Resolution: 0.1 °C

Timer Scale: 99 min 59 sec / 99 hr 59 min / 99 dy 23 hr

Turn-On Delay Time: Automatic Start/Stop timer / Continuous Operation

Sensor: Class A PT-100 Ω Sensor

Safety Data

Safety Device: Dual Over Temp. Cut-Off

Digital System Safety: Cut-off heater and Audio Visual Alarm

Analog System Safety: Cut-off heater 10% above set temp.

Max Temp Safety: Max Temp Cut-Off heater and Audio Visual Alarm

Door Safety: Cut-Off heater and blower when door opened

Sensor Safety: Sensor Disconnection Alarm

Electrical Safety: Over Current Cut-Off

Material Data

Body: Epoxy Powder Coated Steel

Chamber: Electro-Polished Stainless Steel 304, 3.0 mm thickness

Shelf: Anodized Aluminum, 3.0 mm thickness

Insulation: 50 mm Woven Mineral Wool

Fittings: Vacuum / Vent : Ø 11 mm hose barb

Vacuum Valve: 2-Way Vacuum/Lock Valve

Ventilation Valve: Needle Valve for ventilation speed control

Electrical Data

Rated voltage: 220 ± 10% VAC

Power frequency: 50 / 60Hz

Heater Output: 2.8 kW (4 x 700 Watt)

Nominal power: 2.9 kW / 13.2 amp

Phase: 1 Phase

Plug configuration: CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity: 5 °C - 40 °C, < 80% RH

Net Weight: 86.0 kg
