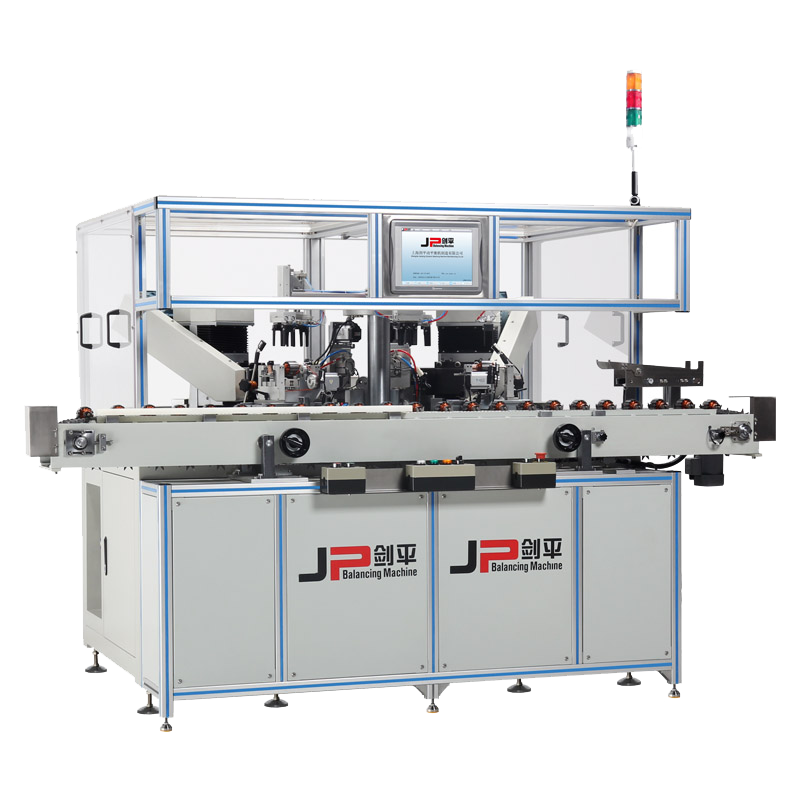

Max Weight of Workpiece (kg): 1.5
Max Diameter of Workpiece (mm): 30～60mm
Rotor Length (mm): ≤240mm
Rotor Lamination Thickness(mm): φ20～60mm
Balancing Speed (r/min): 800～1200rpm
Balancing Motor Power (kw): 0.4 KW Servo Motor
Min Achievable Residual Unbalance Amount (g.mm/kg): ≤0.2
Testing Time (second): ～9s
Reduction Rate of Unbalance: ≥90%
Working Pressure (MPa): 0.45-0.6
Air Consumption: ～40L/min
Operating Voltage (V): AC: 380V 3 Phase/50Hz
Drilling Power (kw): 0.75*2
Total Power (kw): ～8.9
Protection: Phase Sequence Protection, Overload Protection, Air Pressure Monitoring
