- Typical Performance Characteristics - at 20 degrees C
- Detected Bands:
+ 4G 800MHz:
Band Width: 824 – 849 MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -59dBm
+ 2G/4G 1800MHz:
Band Width: 1710 - 1785MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -52dBm
+ 4G 2600MHz:
Band Width: 2500 – 2570 MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -48dBm
+ 2G 900MHz:
Band Width: 880 - 915MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -52dBm
+ 3G (UMTS) (WCDMA) 2100 MHz:
Band Width: 1925 - 1975MHz
Out-of-Band Attn: > 70dB
Min. Detection Level: -76dBm
+ WIFI/BLUETOOTH 2400MHz:
Band Width: 2400 – 2485 MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -56dBm
-Display: TFT Colour 3.5’ High Contrast Graphic Display
-Battery:
Internal 3.7V 2400 mAH Li-Ion rechargeable
Operating Duration – fully charged battery 8 hours
Charge Time – 4 hours
-Operating Temperature Range: -15 to +50 degrees C - Relative Humidity < 90%
-Dimensions: 173mm x 103mm x 25mm
-Weight: 400 g – Main Unit
-Signal Processing and Control: RISC Based Microcontroller with real time clock
-Event Log:
Maximum 4000 Events – Cellular Log
Maximum 24 Hours – 2.4GHz/Wifi/Bluetooth Log
-USB Socket: For USB Stick download only

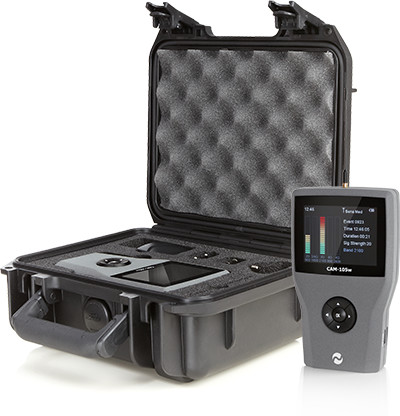

SUPPLIED ACCESSORIES:
• Semi-Rigid Multiband Whip Antenna
• 5V DC Charger - 110V to 240V AC input (Auto Switching) with International Adaptors
• Heavy Duty Military Standard Carry Case
