Standards: JIS K6253·ISO 7619·ASTM D 2240
Loading System: Coil Spring Type
Spring load: Hardness Indication: 0~100point; mN(g) 550(56)~8050(821)
Indentor Design: 35-Deg Truncated Cone Dia. 0.79mm
Presser foot 'Dimension: Outer Dia. 13mm, Inner Dia. 3.0mm
Indication range: 0~100 point (Minimum Loading Value:0.1 point)
Sensor's Descend speed Control: Air Damper
Sensor's Height Adjustment Range: 0~80mm
External Output: RS 232C (PC/PRINT Changeable)
Printer: Option (RS 232C I/F)
Power supply: Single phase AC100V 2A
Weight: Approx. 18kg
CHARACTERISTICS

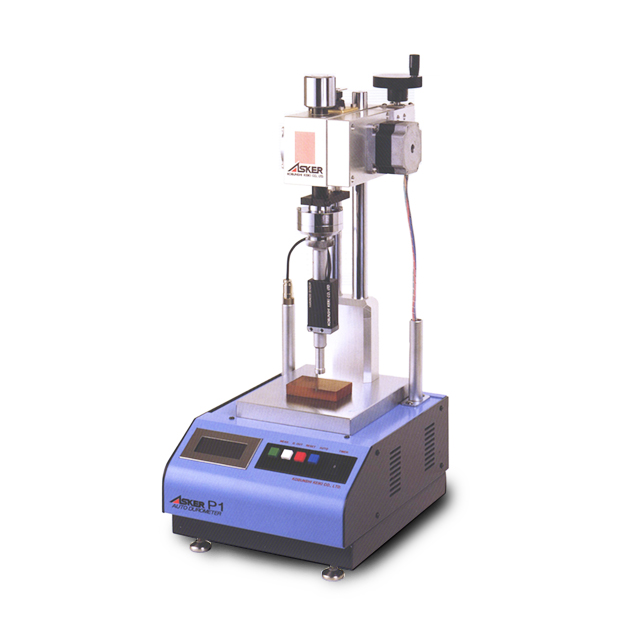

A newly developed Auto-Loading Durometer applying multi-data indication function combined with motor-driven constant speed and constant loading
mechanism.
–> Available for hardness measurement with one-push operation and output to personal computer and printer is executable
–> High repeatability of the hardness readings is assured from the flexible joint function and a constant pressure loading mechanism.
–> Stable measuring position can be obtained constantly with double slide shaft
–> Multi-data (peak value, real-time value, timer-hold value) enables more-sided control of hardness.
–> Measurement of hardness in accordance with the respective standards of JIS, ISO and ASTM etc. is possible by replacement of sensor.
