Output Voltage: 0～6kV(DC)±(2%+5V)
AC Current:
Upper Limit: 0.00 – 20.00mA ±(2% + 2 dgts)
Lower Limit: 0.00 – 20.00mA ±(2% + 2 dgts)
DC Current:
Upper Limit: 0.01 – 10.00mA ±(2% + 2 dgts)
Lower Limit: 0.01 – 10.00mA ±(2% + 2 dgts)
Insulation Resistance Test Voltage:
Range: 100 – 1000kV
Accuracy: ± (2% + 5V)
Insulation Resistance:
Range: 1-1000 MΩ
Accuracy: ± (2%±2dgts) Voltage ≥ 500V DC
± (5%±2dgts) Voltage＜500V DC
Range:(1000-9999)MΩ
Accuracy:± (5%±2dgts) Voltage ≥500V DC
±（10%±2dgts) Voltage＜500V DC
LCD Monitor Display: back lit LCD
Testing Time:
Range: 0.1 – 999.9s
Accuracy: ±(2% + 0.05 sec)
Sampling Interval: 500ms
Remote Control:
Input: Test, Reset
Output: Pass, Fail, Test-in-Process
Test Alarm: Buzzer, Indicator Light
Correction Method: Software Calibration
Memory Device: It can memorize the setting values of voltage, current, resistance, time, etc.resistance, time, etc.
Temperature / Humidity:
Range: 0℃ – 40℃
Humidity: ≤75% RH
Size and Weight:
Dimensions: W × H × D: 280mm × 100mm × 370mm
Weight: 10kg
Standard Accessories: JK26002A
Manual

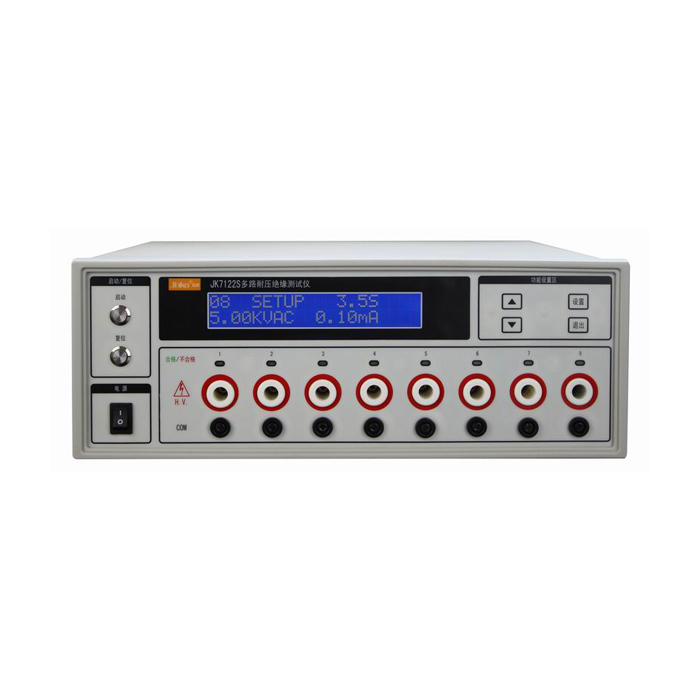

JK7122S is a multi-channel scanning withstand insulation tester which can respectively output AC/DC withstand insulation test voltage of 4,8 and 16 channels, It can be made time-sharing scanning test to multiple channels and can also be made the test to multiple channels at the same time.It is capable of testing the withstand insulation performance of electronic components, household appliances, transformers, lighting appliances, electric tools, electric heating appliance ,etc quickly and accurately , improving the test efficiency.
Features
■ The output voltage will be raised,hold,dropped according to the time gradient.
■ I t offers 3 parameters test of AC withstand voltage,DC withstand voltage and insulation resistance.
■ It can be made the continuous test for single channel, time-sharing scanning test for multiple channels and simultaneous test for multiple channels.
■ 15 groups of test memory pattern
■ With the function of arcing detection
■ With human-machine interface
■ Easily connection,convenient for use.
