Channel: 16 (can be extended to 128)
Graduation Number: Thermal resistance: PT100
Basic Accuracy: ±0.5℃ (PT100)
Test Range: -200℃~ 1300℃ (the range of the test is different because of the thermocouple)
Resolution: 0.1℃
Correction: Error correction for each channel
Comparator: Up-over/down-over alarm, Each channel is individually set up-over/down-over value
Standard Interface: U disk interface, Mini (virtual serial port)
Standard Software: Data acquisition software
Cold End Compensation Accuracy: 0.5℃
Other: TFT-LCD true color LCD display, Fault detection function
General Characteristics:
Power Requirements: Input: 100-240V~50/60Hz, 0.35A; Output: 9V 1A DC
Battery Parameters: 8.4V, Li, 6000mAH rechargeable battery
Battery Charging Time: Single continuous charging: maximum 300Min
Battery Working Time: ≤ 8 hours
Size/Weight: External dimensions (mm): 229 (H) * 148 (W) * 46 (D), 650g
Accessories: K type Thermocouple, DC power adapter, portable package, lithium battery, Mini-USB communication cable, data acquisition software, wireless transmission module (optional)
Brief description

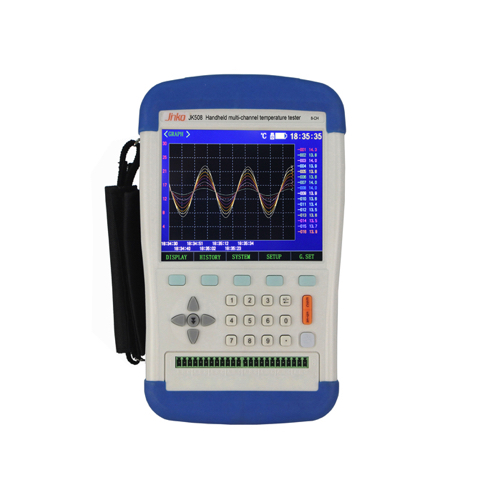

JK508/JK516 Handheld multi-channel temperature acquisition instrument is the latest handheld temperature curve acquisition instrument on our technology platform. Using high-performance ARM microprocessor control and 5.6 inch
LCD display, let waveform display at a glance. It can also collect multiple temperature data at the same time, up-over and down-over alarm and communication transmission. It can be extended to more than 128 temperature data, compatible with a variety of temperature sensors, fast response, data stability, at the same time have fault detection function. It is powered by a lithium battery up to 6AH to ensure long-term acquisition work, and special acquisition software is provided free of charge. The instrument is equipped with a Mini-USB (virtual serial port) interface, and data acquisition, analysis and printing can be realized through the our computer software. Support USB disk storage to store sampling data. The user can independently correct each channel of data.
Features
■ Fast response speed and stable data
■ 5.6 inch large screen display, clear curve
■ Temperature difference compensation
■ Historical query data curve
■ The instrument has a temperature curve display function, displaying the maximum, minimum, and average values
■ Curve data storage
■ 16G memory card
■ U disk to store data
