Basic Accuracy: 1%
Output Voltage: Numerical Control: 10v～1000vdc
Measurement Range:
Current: 1na~20ma
Resistance: 1kω~1000gω (2%+2 dgt.)
Reading: 9999
Range: Automatic
Charging Current: 200ma (Max)
Measurement Speed: 8meas/Sec
Display Result: Direct Reading, Resistance, Peak, and the Result of the Separation
Correction: Open Circuit Remove One Zero
Charging Timer: 999.9s
Comparator: 5 Set Of Records, Gd/Ng
Fail-On: Gd, Ng
Interface: Rs-232 Handler
Power Requirement:
Voltage: 198vac～240vac
Frequency: 50hz
Power: Maximum 50va
Dimensions And Weight:
External Dimension (mm): 310 (W) x 110 (H) x 390 (D)
Inside Dimension: 280 (W) x 88 (H) x 370 (D)
Weight: 5kg
Accessory: Test Clips, Test Fixture
Manual
Datasheet

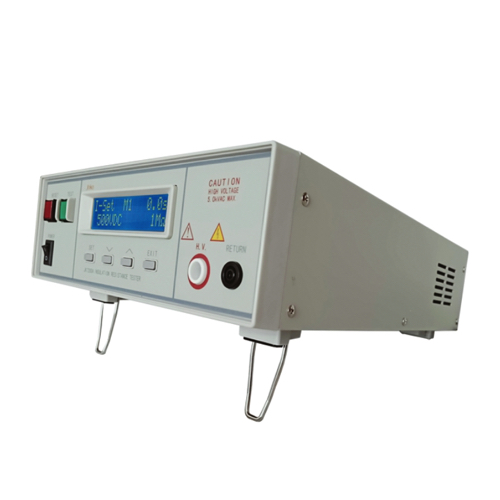

JK2683 leakage current and the insulation resistance is to use high performance microprocessor control capacitor leakage current/insulation resistance meter. CNC test voltage: 10 v ~ 1000 v, 7 range test, the leakage current accuracy increased to 1%, it can measure 1 na ~ 20 ma current, the insulation resistance of the largest 1000 g Ω biggest display digits number 9999. High-speed test provides the best solutions for automated production assembly. Instrument has a sorting function, sorting ring set, It also can be equipped with Handler interface which is applied to the automatic sorting system to accomplish automatic assembly line testing. By the built-in RS232C interface, can be used for remote control and data acquisition and analysis.
Features
●A variety of parameters shows at the same time
●Peak-value-holding function
●Full range open reset function
●The comparator output：Through RS232C output or Handler interface separation results.
●Fail-on：can set up fail-on switch
●GD/NG fail-on和trigger mode：The external trigger, manual triggering, internal trigger and remote trigger
●Optional foot switch
