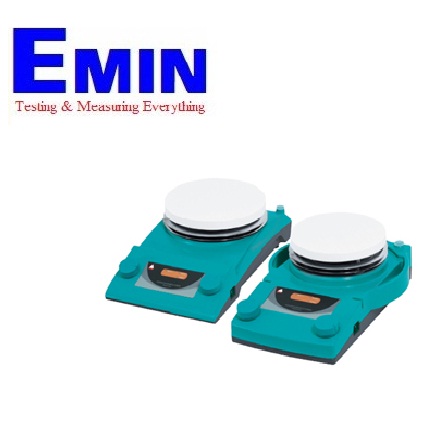

Jeiotech TM-14SB Hotplate Stirrers (Basic)

Name: Jeiotech TM-14SB Hotplate Stirrers (Basic)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelTM-14SB

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model: TM-14SB
Manufacture: Jeiotech
Origin: Korea
warranty: 12 months

Temperature Range (℃ / ℉) Amb. to 350 / 662
Speed Range (RPM) 50 to 2,000
Heating Power (W) : 600
motor   BLDC motor
Hot Top Indicator (℃ / ℉)    Warning lamp (50 / 122)
Over Temp.    Top plate Main body PCB
Over Current    Current limit protection
Timer    2 type, 1min to 99 hrs 59 min
Load, Max (kg / Ibs)    25 / 55.1
Material    Ceramic coated aluminum
Dimension (WxDxH, mm / Inch)    161x290x100 mm
Electrical Requirements (230V,50Hz / 60Hz)    3 A

Heating Bath

transparent safety shield

Transparent Safety Shield

Clamp Holder (C-10,C-7,C-5)

Clamp Holders (C-10, C-7, C-5)

Support rods

Support Rods

Operating Features

Hot Top Warning Indicator on the control panel will blink whenever the top plate temperature is over 50℃ to prevent accidental injuries.
Overheat prevention circuit turns off the heater if the top plate temperature reaches 450℃ for any reason.
Virtually no decoupling of magnetic stir bars even with viscous media or at high speeds.
Temperature limit can be set between 50 and 350℃.
Thanks to the built-in BLDC motor, stirring action stops instantly when the stirrer is turned off.

Constructional Features

Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
Fast and precise stirring operations even at high temperatures are enabled by the BLDC motor and a powerful magnet.
Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath.
(included for Advanced Models and optional for Basic Models)
A transparent safety shield protects users from liquid splashes or de-coupled stir bars during operations.
(included for Advanced Models and optional for Basic Models)
Two support rods allow for diverse flexibility in configuring other test equipments and accessories.
(included for Advanced Models and optional for Basic Models)

Model ¹⁾			TM-14SB	TM-14RB	TM-17SB	TM-17RB
Technical Data	Heating	Temperature Range (℃ / ℉)	Amb. to 350 / 662
		Control	Scale
		Heating Power (W)	600		800
	Stirring	Speed Range (RPM)	50 to 2,000
		Capacity (L / cu ft, H2O)	20 / 0.71
		Magnetic Bar, Max. (ØxL, mm / Inch)	8 x 40 / 0.31 x 1.57
	Safety	Hot Top Indicator (℃ / ℉)	Warning lamp (50 / 122)
		Over Temp.	Top plate Main body PCB
		Over Current	Current limit protection
	Motor		BLDC motor
	Load, Max (kg / Ibs)		25 / 55.12
General Data	Top plate	Material	Ceramic coated aluminum
	Top plate	Dimension (Ø, mm / Inch)	140 / 5.51		170 / 6.69
	Body	Material	Cast aluminum
	Body	Dimension (WxDxH, mm / Inch)	161x290x100 / 6.34x11.42x3.94	210x294x99 / 8.27x11.57x3.9	191x330x101 / 7.52x12.99x3.98	240x324x100 / 9.45x12.76x3.94
	Net Weight (kg / Ibs)		2.8 / 6.17	3 / 6.61	3.5 / 7.72	3.6 / 7.94
Electrical Requirements (230V,50Hz/60Hz)			3 A		4 A
Cat. No.			AAH34215K	AAH34315K	AAH34225K	AAH34325K
Electrical Requirements (120V,60Hz)			5A		6.7A
Cat. No.			AAH34213U	AAH34313U	AAH34223U	AAH34323U

1) S / SB Models: straight type, R/RB Models: round type with handles.
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ Above specifications can be changed without prior notice.
