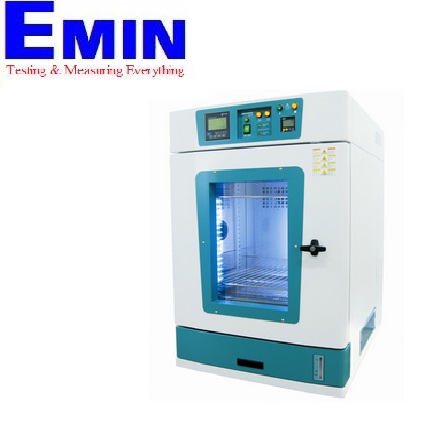

Jeiotech TH-PF-100 Finger Print Temperature & Humidity Chambers

Name: Jeiotech TH-PF-100 Finger Print Temperature & Humidity Chambers
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelTH-PF-100

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model: TH-PF-100
Manufacture: Jeiotech
Origin: Korea
Warranty: 12 months

Chamber Volume (L / cu ft)   100 Lit
Controller    PID control (LCD Type)
Temperature: -5 to 85 / 23 to 185 without Light
            Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH    0.5 / 0.55
            Variation 1) (±℃ / oF) at 40℃ / 60%RH    0.5 / 0.9
Humidity: 20 to 85 %
             :Fluctuation (±%RH) at 60%RH / 40℃    3
             : Variation 2) (±%RH) at 60%RH / 40℃    3
Light Source (ICH Q1B option 2): Cool White, Ultraviolet-A, Light Uniformity
Time: 25min (20℃ → 85℃)/ 35min (20℃ → -5℃)
Refrigeration: System Air - cooled, R-404A, Capacity (W)   400
Material: Ni-Cr Wire Heater / SUS Tube Heater , Polyurethane
Interface Port    Basically RS-232C, [RS-485 : optional]
Dimension (W×D×H): Internal (mm / inch)   500×380×530 mm
                                : External (mm / inch)    670×845×1045 mm
Net Weight (kg / lbs)   115 kg
: AC230V, 1ph, 50Hz   4.3 A Cat.No.   AAH82332K

Datasheet

Temperature & Humidity Control Range

TH-PF-100

80 ~ 90% RH at 40℃
65 ~ 95% RH at 50℃
50 ~ 95% RH at 60℃
50 ~ 90% RH at 90℃

Constructional Features

Small size and light weight.
Compact design with high performance.
Choose from 9 different model chambers based on size and temperature preference.
- The series comes in 3 different models based on temp.
and humid. ranging in -35℃ to 150℃, -20℃ to 120℃, -0℃ to 120℃ / upmost 20 to 95% RH and three different volume capacities of 20L, 65L, 100L.
Efficient system with durable materials.
- The evaporating system for better thermal efficiency with corrosion-resistant materials.
- The heating system with minimized potential heat when heating or cooling for prompt reaction time and advanced performance.
Water tank for easy water supply.
- Maintenance can be done easily from the front side.
Viewing window.
- A tempered glass window provides a clear view of samples in the chamber, beneficial during testing.
Cable port for external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit. Additional 50mm or 80mm diameter cable ports can be custom ordered. (optional)
Optional stand for space-saving layout.
- For use in limited spaces: stand and casters.
※ Be sure to secure the stand onto floor with

Safety Features

Key lockable door for your evidences.
Leakage breaker for power supply.
Over current protection.
Overheat protection.
Switch-off after alarm for over heating.
Automatic shut off after overheat alarm.
Low and empty water level alarm.

Operating Features

Microprocessor PID control / Auto-tuning / Calibration.
Digital LCD display with touch-sensitive keys.
Easy operation with wide LCD screen.
- Temperature and humidity / timer settings and operating condition.
Program patterns are memorized for 10 years due to a battery built into the PCB.
Expansion parameter inputs. (displayed by letters)

Programming operation

Description	TH-PE
Programmable Pattern Capacity	10
Pattern Repeat Time	999
Max. Segments per a Pattern	100
Available Max. Segments*	100
Programmable Process Time per a Segment	0 to 99 hr 59 min

* Even though the max. segments per a pattern are 100, available total segments are up to 300 not 3000, so you need to arrange the number of segment and patterns properly.

Computer interface. (optional)
- Software provided
- Save data in excel format.
- Storage of program information, backup of value settings / recovery, and temperature and humidity values.
- RS-232C port as standard offer.
Chart Recorder. (optional)
- 6 point dot type recorder with digital display.
RS-485 communication port offers a maximum of 9 temp. and humidity chambers to be connected by one PC.(optional)

Model		TH-PF-100
Chamber Volume (L / cu ft)		100 / 3.53
Controller		PID control (LCD Type)
Temperature	Range (℃ / ℉)	40 to 100 / 104 to 212 without humidity
	Fluctuation (±℃ / ℉) at 100℃	0.5 / 0.9
	Variation (±℃ / ℉) at 100℃	0.5 / 0.9
Humidity	Range (%RH)	FULL RANGE : 50 to 9080 to 90 at 40℃65 to 95 at 50℃50 to 90 at 90℃
	Fluctuation (±%RH)	3
	Variation (±%RH)	3
Heater	Material	Ni-Cr Wire Heater / SUS cartridge Heater
	Drying Bulb	400W
	Humidity Bulb	400W
Sensor	Temperature	Pt 100
Sensor	Humidity	Electronic sensor (free of drying a wet pack and good response time)
Air Flow		2 set of sirocco fan (60W)
Material	Interior	SUS #304 (2B polish)
	Exterior	SUS #304 & Steel, 1t, Double painted & baked
	Insulation	Polyurethane (70mm)
	Door	Glasswool
Water Tank	Capacity (L / cu ft)	9 / 0.32
Water Tank	Quality	pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below
Viewing Window (mm / inch)		280×430 / 11.02×16.9
Cable Port		Basically one hole provided / Ø 50mm (2")Optionally max. two holes available/ Ø 50 or 80mm (2 or 3.2")
Interface		Basically RS-232C [RS-485 [Maximum 9 Units Control] - optional]
Dimension (W×D×H)	Interior (mm / inch)	500×380×530 / 1.97×15×20.9
	Exterior (mm / inch)	670×845×1045 / 26.4×33.3× 41.15
	Net Weight (kg / lbs)	115kg±5kg / 253.5±11
Electrical Requirements	AC230V, 1ph, 60Hz	4.5A
Cat. No.		AAH82331K
Electrical Requirements	AC230V, 1ph, 50Hz	4.3A
Cat. No.		AAH82332K

※ Permissible environmental conditions: temperature (18 to 30℃) and relative humidity (up to 85%).
※ Recommended ambient temperature: +20℃(68℉)
※ All specifications are under ambient temperature 20℃(68℉), No load.
