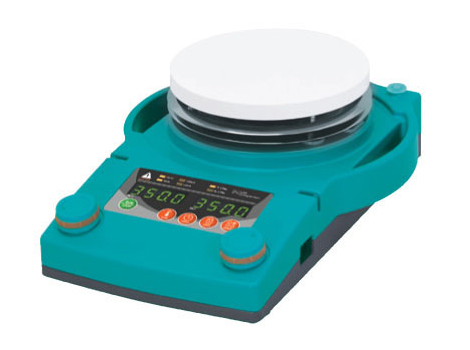

Jeiotech T-17R Hotplate

Name: Jeiotech T-17R Hotplate
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelT-17R

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Temperature Range (℃ / ℉) Amb. to 350 / 662
Control    Feedback Control with PID / Scale
Display    LED digital (0.1℃ resolution)
Heating Power (W) : 800
Hot Top Indicator (℃ / ℉)    Warning lamp (50 / 122)
Over Temp.    Top plate Main body PCB
Over Current    Current limit protection
Timer    2 type, 1min to 99 hrs 59 min
Load, Max (kg / Ibs)    25 / 55.1
Material    Ceramic coated aluminum
Dimension (WxDxH, mm / Inch) 240x324x100 mm
Electrical Requirements (230V,50Hz / 60Hz)    4 A

Heating Bath

transparent safety shield

Transparent Safety Shield

Clamp Holder (C-10,C-7,C-5)

Clamp Holders (C-10, C-7, C-5)

Support rods

Support Rods

Operating Features

Overheat prevention circuit turns off the heater if the top plate temperature reaches 450℃ for any reason.
Hot Top Warning Indicator blinks when the top plate temperature is over 50℃ to prevent accidental injuries.
Button Lock feature prevents inadvertent or accidental changes during operation.
Microprocessor PID control for precise temperature.
Automatic temperature calibration feature for precise temperature control.
Three user-selectable temperature control modes provided:
- Optimal Mode, Fast Mode, Slow Mode.
Optimal heating level can be selected by turning the heater scale knob. (from 0 to 100%)
Two user-selectable timer activation modes allowing the timer to start immediately after the timer setting or to be activated only when the set temperature is reached.

Constructional Features

Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
A transparent safety shield protects users from liquid splashes or decoupled stir bars during operations. (optional)
Two support rods allow for diverse flexibility in configuring other test equipments and accessories. (optional)

Model ¹⁾			T-14S	T-14R	T-17S	T-17R
Technical Data	Heating	Temperature Range (℃ / ℉)	Amb. to 350 / 662
		Control	Feedback Control with PID / Scale
		Display	LED digital (0.1℃ resolution)
		Heating Power (W)	600		800
	Safety	Hot Top Indicator (℃ / ℉)	Warning lamp (50 / 122)
		Over Temp.	Top plate Main body PCB
		Over Current	Current limit protection
	Timer		2 type, 1min to 99 hrs 59 min
	Load, Max (kg / Ibs)		25 / 55.1
General Data	Top Plate	Material	Ceramic coated aluminum
	Top Plate	Dimension (Ø, mm / Inch)	140 / 5.5		170 / 6.7
	Body	Material	Cast aluminum
	Body	Dimension (WxDxH, mm / Inch)	161x290x100 / 6.34x11.42x3.94	210x294x99 / 8.27x11.57x3.90	191x330x101 / 7.52x12.99x3.98	240x324x100 / 9.45x12.76x3.94
	Weight (kg / Ibs)		2.2 / 4.9	2.4 / 5.3	2.9 / 6.4	3 / 6.6
Electrical Requirements (230V,50Hz / 60Hz)			3 A		4 A
Cat. No.			AAH35015K	AAH35115K	AAH35025K	AAH35125K
Electrical Requirements (120V,60Hz)			5A		6.7A
Cat. No.			AAH35013U	AAH35113U	AAH35023U	AAH35123U

1) S Models: straight type, R Models: round type with handles.
※ Permissible environmental conditions: temperature (5 - 40℃) and relative humidity (up to 80%).
※ Above specifications can be changed without prior notice.
