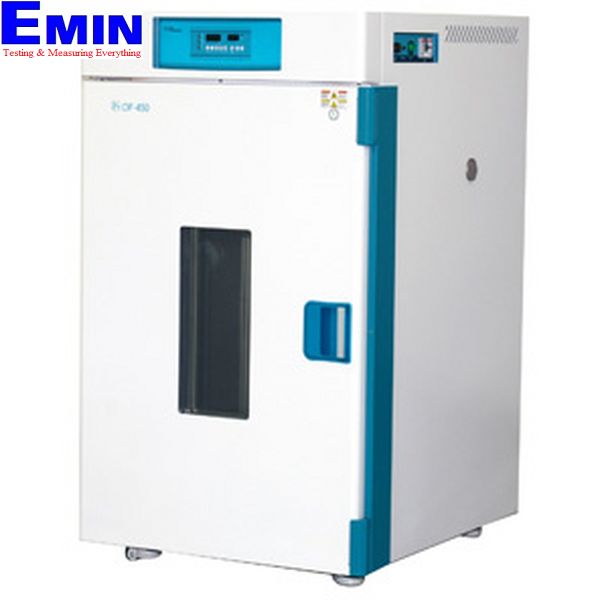

Jeiotech OF-300HW Forced Convection Ovens (314L, 300 ℃, Viewing window door type)

Name: Jeiotech OF-300HW Forced Convection Ovens (314L, 300 ℃, Viewing window door type)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelOF-300HW

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer:Jeiotech
Made in Korea
Model: OF-300HW (Viewing window door type)
Code: AAH191114
Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Operation mode selection after power recovery: either Automatic or Manual Run
RS-232 interface
Forced air, Adjustable 5-speed fan
Chamber volume: 314 L
Temperature Range: Amb. +10 to 300 ℃
Temperature Fluctuation: ±0.2 ℃ at 100℃
Temperature Variation: ±0.9 ℃ at 100℃
Dimension Interior : 645×750×650mm
Dimension Exterior: 835×1020×1225mm
Weight: 210 kg
Power: (380V, 3 ph, 50 / 60 Hz)/6.5A
Include: 2 Wire Shelves

Download Cataloge Jeiotech

Operational Features

Microprocessor PID control
Simple calibration and auto-tuning function
Temperature control
- OF-G models: 10°C above ambient to 200°C
- OF-H models: 10°C above ambient to 300°C
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Operation mode selection after power recovery: either Automatic or Manual Run
RS-232 interface

Constructional Features

Forced air convection generated by two noiseless and powerful sirocco fans ensuring optimal air circulation, temperature uniformity, and short heat-up time
Threefold tempered-glass window providing clear inside view of the chamber (optional)
Rounded inner chamber corners for easy cleaning and optimal airflow
Corrosion-resistant incoloy sheath heating element and stainless steel interior
Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)
Adjustable 5-speed fan for controlling inner circulation rate
Built-in casters for easy transport
Large chamber capacity (maximum 760L/28.8cu ft)
Optional recorders:
- 6-point dot type recorder with digital display
- Thermal line recorder with digital display

Model		OF-300G	OF-450G	OF-750G	OF-300H	OF-450H	OF-750H
Chamber volume (L / cu ft)		314 / 11.0	450 / 15.9	760 / 26.8	314 / 11.0	450 / 15.9	760 / 26.8
Temperature	Range (℃ / ℉)	Amb. +10 to 200 / Amb.+18 to 392			Amb. +10 to 300 / Amb.+18 to 572
	Fluctuation ¹⁾ (±℃ / ℉) at 100℃	0.2 / 0.36	0.1 / 0.18	0.2 / 0.36	0.2 / 0.36	0.2 / 0.36	0.2 / 0.36
	Variation ¹⁾ (±℃ / ℉) at 100℃	0.9 / 1.6	0.7 / 1.3	1.5 / 2.7	0.9 / 1.6	0.8 / 1.4	1.9 / 3.4
Dimension (W×D×H)	Interior (mm / inch)	645×750 ×650 / 25.4×29.5 ×25.6	645×750 ×930 / 25.4×29.5 ×36.6	745×850 ×1200 / 29.3×33.5 ×47.2	645×750 ×650 / 25.4×29.5 ×25.6	645×750 ×930 / 25.4×29.5 ×36.6	745×850 ×1200 / 29.3×33.5 ×47.2
	Exterior (mm / inch)	835×1020 ×1225 / 32.9×40.2 ×48.2	835×1020 ×1505 / 32.9×40.2 ×59.3	955×1140 ×1775 / 37.6×44.9 ×69.9	835×1020 ×1225 / 32.9×40.2 ×48.2	835×1020 ×1505 / 32.9×40.2 ×59.3	955×1140 ×1775 / 37.6×44.9 ×69.9
	Net weight (Kg / lbs)	175 / 386	210 / 463	280 / 617	210 / 463	250 / 551	335 / 739
Electrical Requirements (230V, 1 ph, 50 / 60 Hz)		12.7A
Cat. No.	Solid door type	AAH18015	-	-	-	-	-
Cat. No.	Viewing window door type	AAH18115	-	-	-	-	-
Electrical Requirements (230V, 3 ph, 50 / 60 Hz)			10.0A	13.8A	10.0A	13.8A	16.8A
Cat. No.	Solid door type	-	AAH180213	AAH180313	AAH190113	AAH190213	AAH190313
Cat. No.	Viewing window door type	-	AAH181213	AAH181313	AAH191113	AAH191213	AAH191313
Electrical Requirements (380V, 3 ph, 50 / 60 Hz)			6.5A	8.8A	6.5A	8.8A	10.6A
Cat. No.	Solid door type	-	AAH180214	AAH180314	AAH190114	AAH190214	AAH190314
Cat. No.	Viewing window door type	-	AAH181214	AAH181314	AAH191114	AAH191214	AAH191314

Wire shelf

Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

<td align="cente

Models	Description			Cat. No.
Models	Included	Maximum	W×L(mm/inch)	Cat. No.
OF-02G	2	8	366×316 / 14.4X12.4	EDA8136
OF-12G	2	12	446×366 / 17.6X14.4	EDA8135
OF-22G	2	14	516×416 / 20.3X16.4	EDA8134
ON-02G	2	8	366×316 / 14.4X12.4	EDA8136
ON-12G	2	12	446×366 / 17.6X14.4	EDA8135
ON-22G	2	12	576×419 / 22.7X16.5	EDA8137
OF/ ON-01E	2	10	366×316 / 14.4X12.4	EDA8136
OF/ ON-11E	2	14
