Direct access to our certified experts

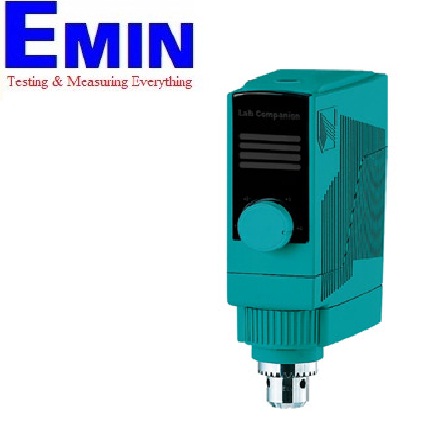

Model: MSE-1
Manufacture: Jeiotech
Origin: Korea
warranty: 12 months
Speed Control Scale
Speed Range (rpm) Up to 1,400
Display None
Torque, Max. (N•cm) 15
Power Max. (W / A) 15 / 1.2
Dimension (mm / inch, W×D×H): 65×135×190 / 2.56×5.31×7.48
Net Weight (Kg / lbs) :2 / 4.41
Electrical Requirements AC 100 ~ 240V, 50/60Hz
Safety Device :Thermal protection, Current protection, Emergency stop (MSM)
Shaft Die, Max (mm / Inch) :3 ~ 10 / 0.12 ~ 0.39
Protection Class (DIN EN 60529) :IP10
| Model | MSE-1 | MSE-2 | MSE-3 | |
|---|---|---|---|---|
| Technical Data | Speed Control | Scale | ||
| Speed Range (rpm) | Up to 1,400 | Up to 1,200 | Up to 900 | |
| Display | None | |||
| Stirring Capacity (L, H2O) |
20 | 30 | class="last"50 | |
| Torque, Max. (N•cm) | 15 | 27 | 53 | |
| Power Max. (W / A) | 15 / 1.2 | 20.4 / 1.7 | 31.2 / 2.6 | |
| General Data | Body Material | Aluminum + PP | ||
| Dimension (mm / inch, W×D×H) |
65×135×190 / 2.56×5.31×7.48 | 70×150×200 / 2.76×5.91×7.87 | 70×150×215 / 2.76×5.91×8.46 | |
| Net Weight (Kg / lbs) | 2 / 4.41 | 2.5 / 5.51 | 3 / 6.61 | |
| Electrical Requirements | AC 100 ~ 240V, 50/60Hz | |||
| Safety Device | Thermal protection, Current protection, Emergency stop (MSM) | |||
| Shaft Die, Max (mm / Inch) |
3 ~ 10 / 0.12 ~ 0.39 | |||
| Protection Class (DIN EN 60529) |
IP10 | |||
| Cat. No. | KR plug | AAH372115K | AAH372215K | AAH372315K |
| US plug | AAH372115U | AAH372215U | AAH372315U | |
