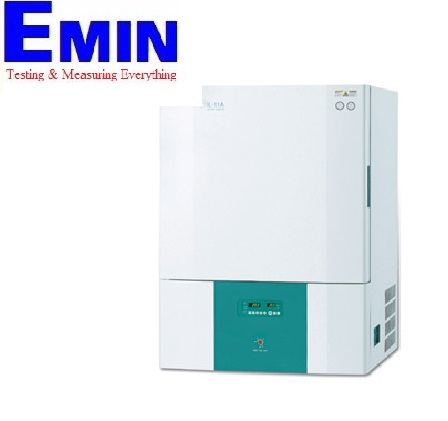

Jeiotech IL-11A Low Temp. Incubators (Air-jacketed Models)

Name: Jeiotech IL-11A Low Temp. Incubators (Air-jacketed Models)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelIL-11A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model: IL-11A
Manufacturers: Jeiotech
Origin: Korea
warranty: 12 months

Temperature    Range (℃ / ℉)    Amb. 4~60 /
                                Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
                                Variation at 37℃ (±℃ / ℉)    0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 600×540×500 /
                                 Overall (mm / inch)    770×772×1010 /
                                 Net Weight (kg / lbs)    108
Electrical Requirements (230V, 50 / 60Hz)    6.9A
Cat. No.    AAH22061K

Operating Features

Temperature control: 4°C to 60°C.
Microprocessor PID control.
Simple calibration and auto-tuning functions.
Digital timer with Delayed ON/OFF function: 1 min to 99 hr 59 min.
High temperature limit setting and open door alarm.
Convenient preset function for 3 most commonly used temperature settings.
Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
Adjustable three-step fan speed with defrosting time and period control.
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
RS-232 interface.

Constructional Features

Natural convection within the chamber induced by the heater and the fan located inside the air jacket.
Large chamber volume: maximum 244L. (8.6 cu ft)
Built-in electrical outlet with a safety cover inside the chamber.
Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
Detachable shelves and round-cornered chamber interior allowing easy cleaning.

Model		IL-11A		IL-21A
Chamber Volume (L / cu ft)		162 / 5.7		254 / 9
Refrigerator (Hp)		1 / 6 HBP		1 / 4 HBP
Temperature	Range (℃ / ℉)	4 to 60 / 39.2 to 140
	Fluctuation ¹⁾ at 25℃ (±℃ / ℉)	0.2 / 0.36
	Variation ¹⁾ at 25℃ (±℃ / ℉)	0.5 / 0.9
Dimension (W×D×H)	Interior (mm / inch)	600×540×500 / 24×21.3×20		500×540×940 / 20×21.3×37
	Exterior (mm / inch)	770×772×1060 / 30×30×42		670×760×1680 / 26×30×66
	Net Weight (Kg / lbs)	108 / 238.1		145 / 319.7
Electrical Requirements (230V)		60Hz, 6.9A	50Hz, 6.9A	60Hz, 8.4A	50Hz, 8.4A
Cat. No.		AAH22061K	AAH22062K	AAH22071K	AAH22072K
Electrical Requirements (120V)		60Hz, 10.2A		60Hz, 12.3A
Cat. No.		AAH22063U		AAH22073U
