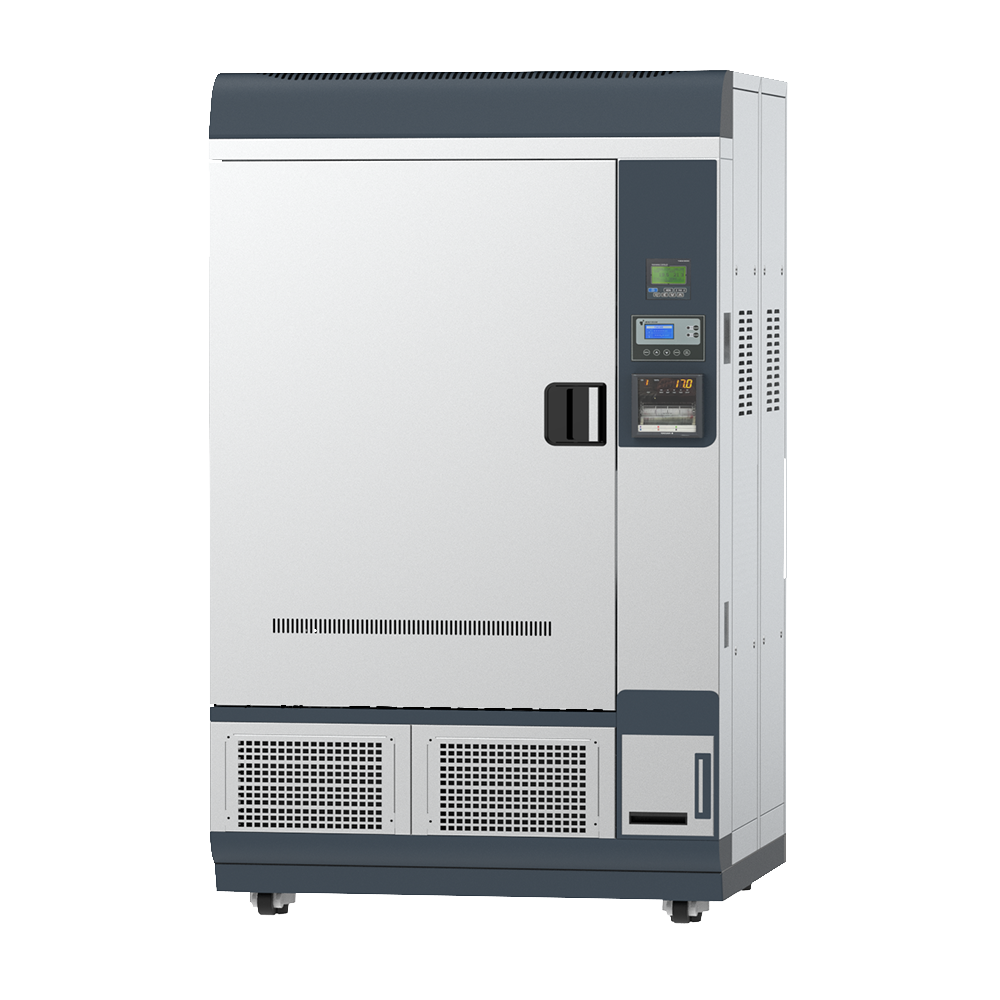

JEIOTECH TH-ICH-800 Temp. & Humid. Chamber (760L,230V/50Hz)

Name: JEIOTECH TH-ICH-800 Temp. & Humid. Chamber (760L,230V/50Hz)
Brand: JEIOtech
Price: 31284 USD
Availability: OutOfStock

ManufacturerJEIOtech(View more products from this manufacturer)

ModelTH-ICH-800

P/NAAHC1012K

USD 31,284.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Chamber Volume (L / cu ft) 760 lit

Controller PID control (LCD Type)

Temperature: -5 to 85 / 23 to 185 without Light

Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH 0.3 / 0.55

Variation 1) (±℃ / oF) at 40℃ / 60%RH 0.5 / 0.9

Humidity: 20 to 85 %

:Fluctuation (±%RH) at 60%RH / 40℃ 3

: Variation 2) (±%RH) at 60%RH / 40℃ 5

Light Source (ICH Q1B option 2): Cool White, Ultraviolet-A, Light Uniformity

Time: 25min (20℃ → 85℃)/ 35min (20℃ → -5℃)

Refrigeration: System Air - cooled, R-404A, Capacity (W) 470

Material: Ni-Cr Wire Heater / SUS Tube Heater , Polyurethane

Interface Port Basically RS-232C, [RS-485 : optional]

Dimension (W×D×H): Internal (mm / inch) 750×880×1160mm

: External (mm / inch) 1220×1215×1965mm

Net Weight (kg / lbs) 400±10

Electrical Requirements AC230V, 1ph, 50Hz 23.5 A Cat.No. AAHC1012K

Temperature & Humidity Control range

TH-TG (190 to 960L)

40~90% RH at 10℃
20~95% RH at 30℃
10~95% RH at 50~80℃
10~80% RH at 90℃

TH-TG (1500L)

40~90% RH at 15℃
30~95% RH at 30℃
20~95% RH at 50~80℃
20~85% RH at 85℃

TH-ICH (300, 760L)

40~80% RH at 15℃
30~85% RH at 30℃
20~85% RH at 50~85℃

Constructional Features

High quality #304 stainless steel exterior and interior.
Casters for easy mobility when installing or moving environmental test chamber.
Convenient maintenance
- Available to check total operating time.
Unique door lock & trim.
Vice lock type door and foam silicone packing to ensure a perfect seal.
Cable port for external probes or wires.
50mm diameter cable port comes standard on the left side of the unit. Additional 50mm or 80mm diameter cable ports can be custom ordered. (optional)
Container type tank for easy adding and changing of water.
- Maintenance of the water tank can be easily performed from the front side.
Door lock.
Cyclic defrost functions does not affect the temperature and humidity control for extended operation.
(Under 15℃ set value)
Powerful two Sirocco fans maintains a constant airflow in the chamber.

Safety Features

Leakage breaker for power supply.
Over current protection.
Overheat / overcool protection.
Switch-off after alarm for over heating.
Water empty alarm.
Door open alarm.
Vice lock door type locking mechanism.

Operating Features

Microprocess PID control / Auto-tuning / Calibration.
Digital LCD display with touch-sensitive 7 keypads.
Easy operation with wide LCD screen.
- Temperature and humidity / timer settings and operation condition.
Program patterns are memorized for 10 years due to a battery built into the PCB.
Expansion parameter inputs. (conveniently display by letters)
Programming operation.
Computer interface.
- Software provided.
- Save data in excel format.
- Storage of program information, backup of value settings / recovery, and temperature / humidity values.
- RS-232C port as standard offer.
Chart recorder. (optional)
- 6-point dots type recorder with digital display.
- Digital recorder. (6-channels)
In the event of a validation the apparatus correctly controls each light and then transfers accurate data and is equipped with light sensors. (UV light sensor / VIS light sensor)
Samples that have to be exposed to the light in which it is completely near the UV energy of less than 200W-hr/m2 is provided to compare directly the results from overall intensity of less than 1.20 million lux-hr, drug substances and reagent.
Total fluorescent lamp and UV lamp indicator and operating time indicator.

Safety Features

Leakage breaker for power supply.
Over current protection.
Overheat protection.
Switch-off after alarm for over heating.
Door open alarm.
Water empty.
Vice lock door type locking mechanism. (optional)
Alarm for completed Photostability Test.

Model			TH-ICH-300	TH-ICH-800
Chamber Volume (L / cu ft)			300 / 10.6	760 / 26.8
Controller			PID control (LCD Type)
Temperature ¹⁾	Range	without Humidity (℃ /^oF)	-5 to 85 / 23 to 185 without Light
		without Humidity (℃ /^oF)	0 to 85 / 32 to 185 with Light
		with Humidity (℃ / ^oF)	+15 to 85 / 59 to185 with Light
	Fluctuation ¹⁾ (±℃ / ^oF) at 40℃ / 60%RH		0.3 / 0.55	0.3 / 0.55
	Variation ¹⁾ (±℃ / ^oF) at 40℃ / 60%RH		0.5 / 0.9	0.7 / 1.3
Humidity	Range (%RH)		FULL RANGE : 20 to 85 40 to 80 at 15℃ (59^oF) 30 to 85 at 30℃ (86^oF) 20 to 85 at 50℃ to 85℃ (122^oF to 185^oF)
	Fluctuation ²⁾ (±%RH) at 60%RH / 40℃		3
	Variation ²⁾ (±%RH) at 60%RH / 40℃		5
Light Source (ICH Q1B option 2)	Cool White ³⁾		6,000 lux	6,500 lux
	Ultraviolet-A ³⁾		4.5 W/㎡	5 W/㎡
	Light Uniformity		VIS. : ±10% UVA : ±15%	VIS. : ±15% UVA : ±15%
Typical Time Required to Reach ICH Recommendation of 1.2 million lux-hr			≒ 200Hr	≒ 184Hr
Typical Time Required to Reach ICH Recommendation of 200 W-hr/m2			≒ 50Hr	≒ 40Hr
Time	Heating ⁴⁾		25min (20℃ → 85℃)	30min (20℃ → 85℃)
Time	Cooling ⁴⁾		35min (20℃ → -5℃)	40min (20℃ → -5℃)
Refrigeration	System		Air - cooled
	Refrigerant		R- 404A
	Capacity (W)		250	470
Cooler			Copper plate fin cooler
Heater	Material		Ni-Cr Wire Heater / SUS Tube Heater
	Drying Bulb (W)		1500	2300
	Humidity Bulb (W)		1200	2000
Sensor	Temperature		Pt 100
Sensor	Humidity		Electronic sensor (Free of drying a wet pack and good response time)
Air Flow			2 set of sirocco fan (2×60 W) : Vertical type
Material	Internal		SUS #304 (2B polish)
	External		SUS #304 (Hairline finish) & Steel, 2t, Double painted & baked
	Insulation		Polyurethane (70mm / 2.76")
	Door		EPDM Sheet
Operating Temperature			18℃ to 30℃ / 64.4^oF to 56^oF, 85%RH (Non-corrosive and pure place)
Water Tank	Capacity (L / cu ft)		15 / 0.53
Water Tank	Water Quality		pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below
Interface Port			Basically RS-232C, [RS-485 : optional]
Cable Port			Basically one hole provided / Ø 50mm (2"),Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2")
Dimension (W×D×H)	Internal (mm / inch)		750×650×650 / 29.5×25.6×25.6	750×880×1160 / 29.5×34.6×45.7
Dimension (W×D×H)	External (mm / inch)		1130×985×1520 / 44.5×38.8×59.8	1220×1215×1965 / 48×47.8×77.4
Net Weight (kg / lbs)			280±10 / 617±22	400±10 / 882±22
Electrical Requirements	AC230V, 1ph, 60Hz		15.4 A	24.5 A
	Cat.No.		AAHC1001K	AAHC1011K
	AC230V, 1ph, 50Hz		14.7 A	23.5 A
	Cat.No.		AAHC1002K	AAHC1012K

1) All specifications are under ambient temperature 20℃ (68^oF), No load.
2) Technical data according to DIN 12880, IEC 60068.
3) The value is measured on the center of chamber at the point of vertical direction.
4) Up to 98% of the set value.
