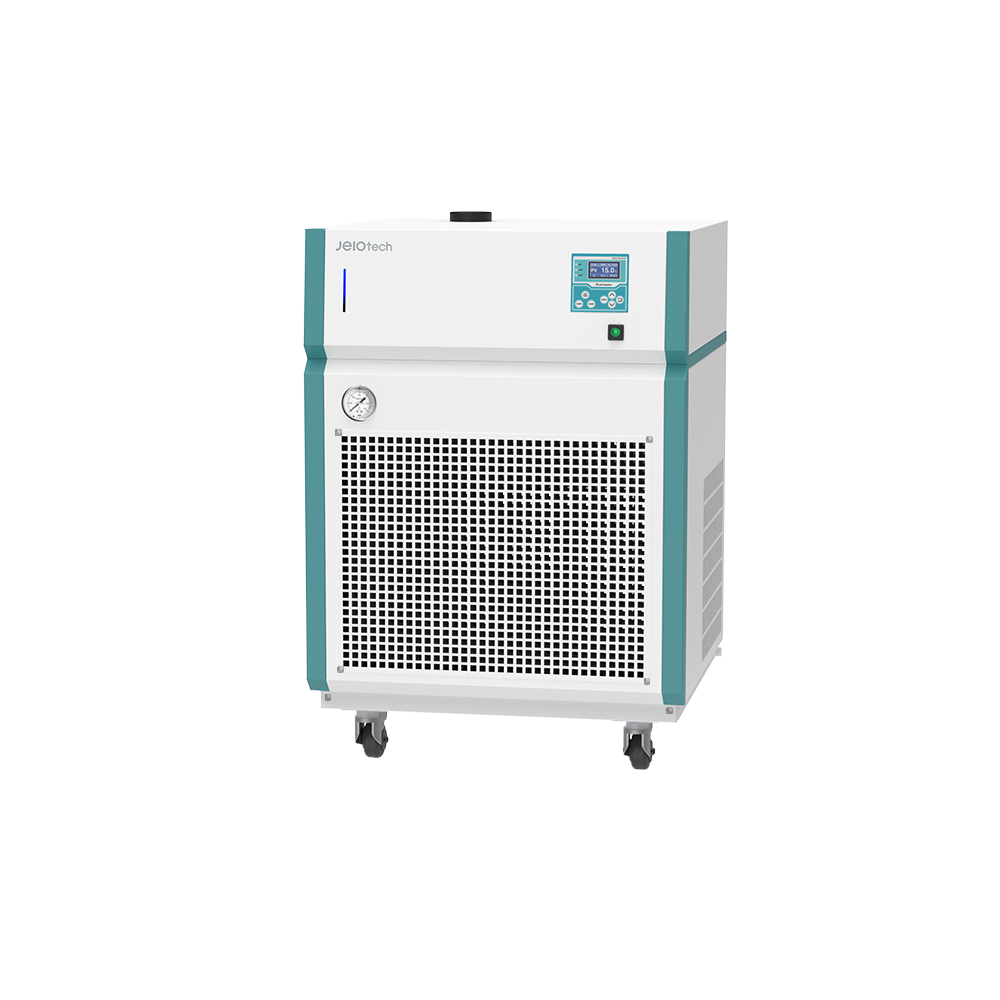

JEIOTECH HX-55H Recirculating Coolers (3hp, with Centrifugal pump, KR Plug,380V)

Name: JEIOTECH HX-55H Recirculating Coolers (3hp, with Centrifugal pump, KR Plug,380V)
Brand: JEIOtech
Price: 11709 USD
Availability: OutOfStock

ManufacturerJEIOtech(View more products from this manufacturer)

ModelHX-55H

P/NAAH64158K

USD 11,709.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Temperature Range(℃ / ℉)    +3 to 40 / +37.4 to 104
Temperature Stabilityat 15℃, (±℃ / ℉)    1 / 1.8
Cooling Capacity: at 20℃ (kw)-7.1/ at 10℃ (kw)    -5.1/ at 5℃ (kw)-4.2
Pump: Max. Flow Rate (L / min, gal / min)    28
         : Max. Pressure (bar / psi)    4.3
Dimension: Overall (WxLxH, mm / inch)   745×800×1095 mm
Net Weight (kg / Ibs) 140kg
Electric Requirement 380V, 50Hz, 8.5A- Cat.No.AAH64158K

Operating features

• Control temperature range is from 3℃~40℃.
• Clear and easy-to-use LCD display. (resolution 0.1℃)
• Bright LED water level indicator can be seen from a distance.
• Low fluid level and dry-running protection when triggered shows an error symbol on
the display and an audible buzzer sound.
• If the equipment operates at 40℃ or above due to the external environment, user can simply identify
the error with a visual signal or an audible buzzer sound.
• Pump pressure can be controlled using a by-pass function. (only for H type)

Constructional features

• The refrigerating system is designed to reduce energy consumption and to maximize in refrigerating
   efficiency.
• Eco-friendly R-404A refrigerant is used to prevent environmental pollution. Double service valve is
   used to prevent refrigerant leakage.
• Removable gridded vent for reducing condenser contamination and to facilitate cleanliness.
• A plastic solution inlet is for easy and safe pouring of solution into the chiller unit.
• Pressure gauge comes standard with chiller units to provide fluid system diagnostics at a glance
   and for observing the pump pressure.
• Wheels allow for easy mobility throughout the lab.
• The beautifully designed chiller is compact.
• Different types of pumps and valves come standard with the chiller to provide versatility.
• Variety of accessories are available to meet user’s different lab environment needs. (refer to accessories)

Model		HX- 20	HX- 25	HX- 20H	HX- 25H	HX- 35H	HX- 45H²⁾	HX- 55H²⁾
Temperature¹⁾ (Bath fluid : water)	Working Temperature Range (℃ / ℉)	+3 to 40 / +37.4 to 104
Temperature¹⁾ (Bath fluid : water)	Temperature Stability at 15℃, (±℃ / ℉)	1 / 1.8
Cooling Capacity (bath fluid : water)	at 20℃ (kw)	1.9	2.4	1.9	2.4	3.6	4.7	7.1
	at 10℃ (kw)	1.4	1.7	1.4	1.7	3.1	3.6	5.1
	at 5℃ (kw)	1	1.4	1	1.4	2.4	2.9	4.2
Pump	Max. Flow Rate (L / min, gal / min)	38 / 10.03		28 / 7.39
Pump	Max. Pressure (bar / psi)	1.58 / 22.92		4.3 / 62.37
Dimension	Max,. Filling Capacity (L, cu ft)	35 / 1.24				45 /1.59
	For Tubing Dia (mm / inch)	20 / 0.8
	Overall (WxLxH, mm / inch)	620×785×990 / 24.4×30.9×39.0				745×800×1095 / 29.3×31.5×43.1
	Net Weight (kg / Ibs)	93 / 205	101 / 223	97 / 214	105 / 231	120 / 265	140 / 309	140 / 309
Electric Requirement (230V, 60Hz)		8.5A	9A	9A	9.5A	15A	19A	-
Cat. No.		AAH 64011K	AAH 64021K	AAH 64111K	AAH 64121K	AAH 64131K	AAH 64141K	-
Electric Requirement (230V, 50Hz)		7A	7.6A	10.5A	11A	17A
Cat. No.		AAH 64012K	AAH 64022K	AAH 64112K	AAH 64122K	AAH 64132K	-	-
Electric Requirement (120V, 60Hz)		17A	22A
Cat. No.		AAH 64013U	AAH 64023U	-	-	-	-	-
Electric Requirement (380V, 60Hz)							10A	11.5
Cat. No.		-	-	-	-	-	AAH 64149K	AAH 64159K
Electric Requirement (380V, 50Hz)							7A	8.5A
Cat. No.		-	-	-	-	-	AAH 64148K	AAH 64158K

1) Technical data according to DIN 12876.
2) Only HX-45H, 55H is recorded by 380V, 60Hz.
※ Above specification value is recorded by 50Hz.
※ The performance values refer to +20℃(68℉) ambient temperature.
※ Product performance may be affected by ambient temperatures.
