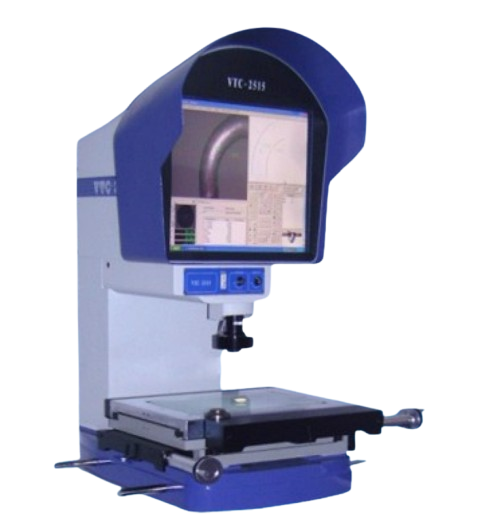

Jaten JTDVC-2515 (VTC2515) Vision Measuring Machine (300X150X125mm)

Working Stage

Metal Stage Size (mm): 408X308

Glass Stage Size (mm): 305.6x197.5

X Y Z axis Travel (mm): 250x150x200

Dimensions (L x W X H) (mm): 776x653x1760

Data Measurement System

Z-Axis Travel: 200 mm (including focus adjustment)

Lens Focal Length: Approx. 92 mm

X, Y, Z Digital Display Resolution: 0.0005 mm

X, Y Coordinate Indication Error:  ≤ (3 + L/200) µm

Imaging System:

Camera: 1/3" Color CCD Camera

Zoom Objective Magnification: 0. 7 - 4.5X

Total Video Magnification: 30X - 230X

Object Jfield of View: 7 - 1.1 mm

Surface Light Source & Transmitted Light Source: LED-basedwith adjustable brightness

Power Supply: 180V(AC) -260V (AC) 50Hz

Measurement Software:

Standard software includes automatic edge detection, deburring measurement, and workpiece al igrunent.

It supports measurements of points, 1ines, circles, angles, center distances, and more
