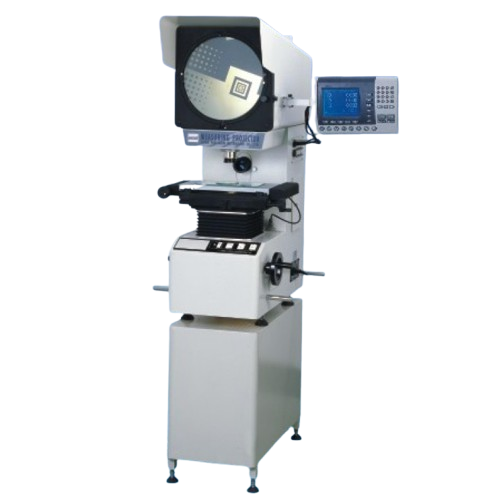

Type: observe Image
Metal Stage Size: 350x 170mm
Glass Stage Size:246x120mm
Stage Travel: X /Y: 200x 100mm
Stage Travel: Z-axis: 100mm (for focusing)
Accuracy: <3+L/200(µm)
Resolution of X/Y-: 0.0005mm
Screen:
Diameter: 312mm, Effective Range ;>: 300(with "*" Reticle):
Rotary Range: 0-360; Resolution Rotary Indicator: 1 'or 0.01:
Digital Readout: DP300(561-301) Multifunctional Data Processing System
Illumination: Surface and Contour lllumination:24v/150w halogen lamp (adjustable)
Cooling System: Forced Cooling (3-axis-fans)
Power Supply: AC110V/60Hz:220V /50Hz.650W
Dimension(LxWx H): 780x530x1150mm
Gross/Net weight: 200/155Kg
Auxiliary Lens
Video Magnification / Field of View(mm)
15x~95x / 20~3.2
30X-190X / 10~1. 6
60X-380X / 5-0.8
Video Magnification / Field of View(mm) / Working Distance(mm)
7.5X-48X / 40~6.4 / 175
15X-96X / 20-3.2 / 96
30X-190X / 10.6-1.6 / 32
