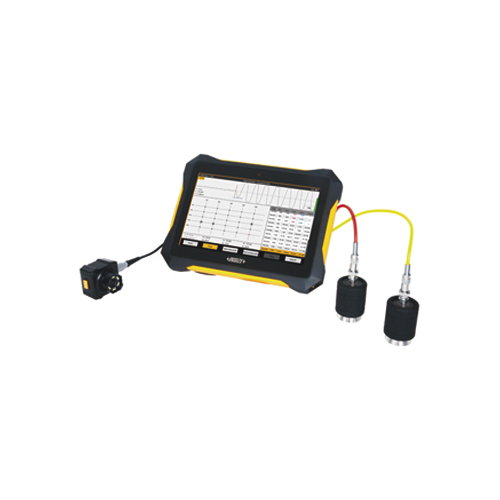

INSIZE UFD-Q390 Ultrasonic Flaw Detector For Concrete (5~500mm, 2CH)

Detection channel: 2

Depth measurement range: 5~500mm

Width measurement range: 0.01~10mm

Sound time measurement range: 0~4096000μs

Wave amplitude measurement range: 0~170dB

Sampling interval: 0.025μs-2000μs multi-speed selectable

Sampling length: 512 points~2048 points multi-speed selectable

Transmit pulse width: ≤10μV

Emission voltage: 0.1μs~100μs

Trigger method: 125V, 250V, 500V, 1000V selectable

Storage: automatic, built-in 16GB

Data output: USB, WIFI

Operating temperature: -20~60°C

Power supply: rechargeable lithium battery, working time >8 hours

Dimensions (L×W×H): 283×216×41mm

Weight: 1.8kg

Datasheet

Standard Delivery

Main unit: 1 pc

Planar probe: 2 pcs

Miniature camera: 1 pc

Crack ranging scale: 2 pcs

Crack width calibration template: 1 pc

Hand torch: 1 pc

Probe connection cables: 2 pcs

USB disk: 1 pc

Power adapter: 1 pc
