Specification
Measuring range
Opacity Ns: 0~99.9%
Light absorption coefficient K: 0~16.0m^(-1)
Rotary speed: 300~8000 rpm
Oil temperature: 0~120°C
Resolution
Opacity Ns: 0.1%
Light absorption coefficient K: 0.01m^(-1)
Rotary speed: 1 rpm
Oil temperature: 1°C
Accuracy
Opacity Ns: ±2%
Light absorption coefficient K: ±0.05m^(-1)
Rotary speed: ±1%
Oil temperature: ±2°C
Warm-up: 15min
Effective length of optical path: 215mm
Equivalent length of optical path: 430mm
Environment:
Temperature: 5~40°C
Relative humidity: 5~95%RH
Power: AC220V 50Hz
Dimension:
Control unit: 370x280x220mm
Measurement unit: 435x230x360mm
Weight:
Control unit: 5.5kg
Measurement unit: 6.5kg
Standard Delivery:

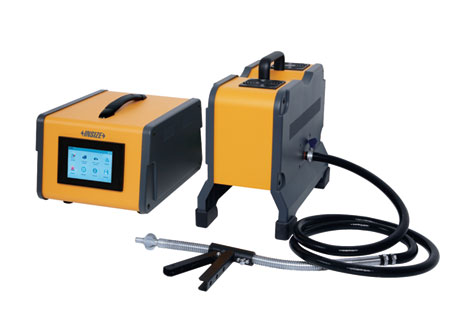

Main unit:
Control unit: 1pc
Measurement unit: 1pc
Sampling probe: 1pc
Connection cable: 1pc
Standard filter: 1pc
■ According to ISO11614
■ Used to test the visible contarninants in emissions (exhaust srnoke) from the compression combustion (diesel) engine. Suitable for environmental protection, motor vehicle testing, engine manufacturing, automobile manufacturing and automobile repair
■ LCD display and touch screen, can test "opacity" and "light absorption coefficient", simple and intuitive
■ With "free acceleration test" and "transient test" function, automatic data processing
■ Use sampling (split) test and "air curtain" protection technology, prevent the optical system from being polluted by exhaust smoke
■ Test chamber is controlled under constant temperature, prevent the moisture condensation and temperature fluctuation for accurate measurements
■ Automatic preheating and zeroing
■ RS232 serial port communicates with external computer
