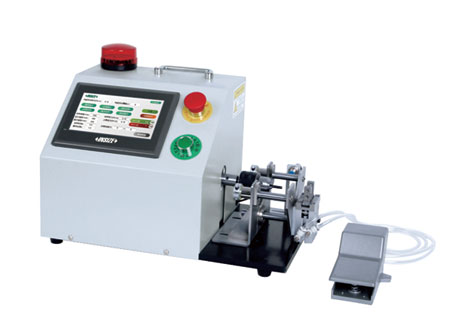

INSIZE TCM-T20 Automatic thread inspection machine (0~1.27Nm, M1 ~ M30)

Measuring range: thread: M1~M30

Reprocessing range: thread: M1~M20

Torque range: guide torque: 0~1.27N.m, max. torque: 0~1.27N.m

Speed range: 0~3000 r/min

Time range: retract time: 0.1~99s, interval: 0.1~99s

Power supply: 220V, 50/60Hz

Rated power:400W

Weight: 13kg

Dimension: 460×290x330mm

■ For inspection of GO, NO-GO and depth of threads

■ Can be for repair of thread defects

■ Real-time display of torque, circles, OK and NG counts

■ If NG thread is detected, audible and visual alarm are activated and the motor is automatically reversed to exit the thread gage Different thread gages and workpiece fixtures can be replaced

■ For different length of thread by adjusting the induction switch Thread gages with DLC coating, excellent wear resistance

■ Optional accessory: thread plug gages, thread ring gages, thread gage fixtures, custom-made workpiece fixtures, foot switch(code TCM-T20-01)
