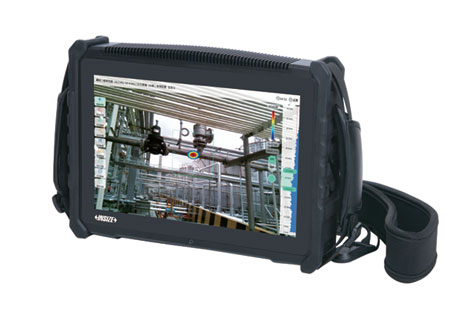

Specification:
Microphone array:
microphone:72 channels MEMS microphone
frequency band:2kHz~65kHz
sound image field of view:62°x45°
sound image frame rate:25FPS
test sound pressure level range:30dB-120dB
detect distance:0.5m-100m
position accuracy:±1cm
Camera:
camera focal length:3.04mm
focusing mode:automatic
Display screen:
resolution:1024x600
size:10"
touch screen:capacitive
backlight:adjuctable
Storage:
data interface:TF memory card/USB 3.0/TYPE-C
data storage format:.jpg (picture), .mp4 (video)
Power system:
battery type:rechargeable lithium-ion battery, working time about 4h
charging mode:TYPE-C charging; portable charger, capable of charging while using
Environment parameter:
switch-on temperature:-10°C~40°C
operating temperature:-25°C~50°C
storage temperature:-20°C~40°C
relative humidity:10%RH~95% RH (non-condensing)
Physical parameter:
lamp:1w
shell material:aluminium alloy, drop-proof design
protection:IP56
dimension:272mmx200mmx50mm
weight:2.1kg (including handle and shoulder strap)
Standard Delivery
Main unit: 1pc
128G TF card:1pc
Reader:1pc
Power adapter:1pc
■ Suitable for gas leakage detection under the pressure or vacuum conditions, equipment noise localization, partial discharge localization and other scenarios
■ Partial discharge pattern display function: real-time display of pulse emission pattern
■ Leakage assessment function: adjustable measuring distance, more accurate assessment of the leakage rate
■ Intelligent noise reduction function: automatically filter sound signals outside the focus frame
■ Adjustable decibel threshold function: used to filter background noise.
■ Support photo and video recording of fault location
■ Language: Chinese, English
