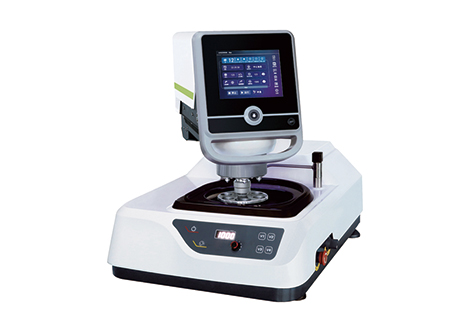

INSIZE MLP-GP406 Grinder and polisher (professinal type) (Ø250mm (customisable))

Specification:

Wheel diameter:Ø250mm (customisable)

Wheel rotation speed:0~1000r/min (adjustment step 20rpm), 150r/min, 300r/min, 600r/min, 1000r/min (four fixed speeds)

Wheel rotation direction:clockwise or counterclockwise

Grinding head speed:50~150r/min (stepless adjustable)

Pressure range:5~60N (single point loading), 20~200N (centre loading)

Operation number:6

Operation time:0~12h

Sample diameter:Ø30mm (customisable)

Air pressure:>0.35MPa

Programmable quantity:256 sets of grinding programs can be stored

Power supply:AC 220V, 50HZ, 3.1KW

Dimension (WxHxD):760x706x717mm

Weight:126kg

Standard Delivery:

Main Unit:1 pc

Silicon carbide paper:20 pcs each, (240, 400, 800, 1200), 80 pcs in total

Poloshing cloth:3 pcs each (velvet silk, woolen fabric), 6pcs in total

Polishing agent:1 pc (W2.5,500ml)

Spray polish agent:1 pc (W2.5,500ml)

Anti-stick disc:1 pcs (Ø250mm)

Magentic pad:5 pcs (Ø250mm)

■ABS shell and stainless steel parts, anti-corrosion, easy to clean

■Can hold up to 6 samples (4 holes are optional)

■Smooth rotation, low noise

■Adjustable speed

■Intuitive pressure and time setting, 256 sets of grinding and polishing programs can be stored

■Water cooling device and abrasive cleaning nozzle prevent samples from overheating and destroying structure

■Replaceable platen, platen rotation direction can be selected

■Centre loading and single point loading, automatic abrasive distribution
