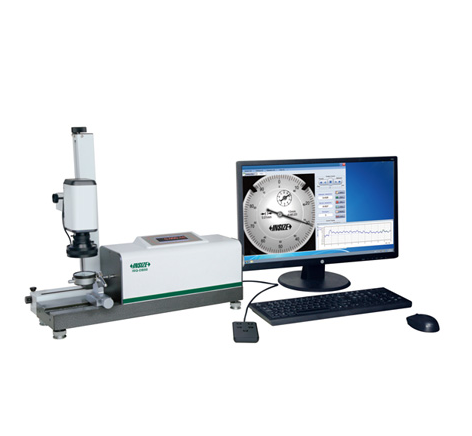

Applicable products: dial indicators, digital indicators, dial test indicators and bore gages
Measuring range: 0-50mm
Resolution: 0.1 μm
Repeatability: 0.1 μm
Speed: average 0.6s/point (adjustable). 3 minutes to calibrate a 10mm dial indicator
Accuracy:
-any 1mm: 0.8 μm
-any 2mm: 1.0 μm
-any 10mm: 1.3 μm
-any 30 μm: 1.5 μm
-50mm: 2.0 μm
Hysteresis: 0.5 μm
Output: RS232
Power supply: 220V, 50Hz
Operation temperature: 20 ±5 °C
Operation humidity: (50~70)%RH
Dimension (LxWxH): 640x240x530mm
Weight: 35kg
Standard delivery:
-Holder for dial indicators and digital indicators (Φ8mm, 3/8”): 1pc
-Holder for dial test indicators (Φ4mm, Φ6mm, Φ8mm): 3pcs
-Holder for bore gages (Φ4-28mm): 1pc
-Computer: 1pc
-Remote controller: 1pc
-Software: 1pc
Optional accessory:
-Holder for split type bore gages: ISQ-DB501
-Cable for INSIZE digital indicators: ISQ-DB502
