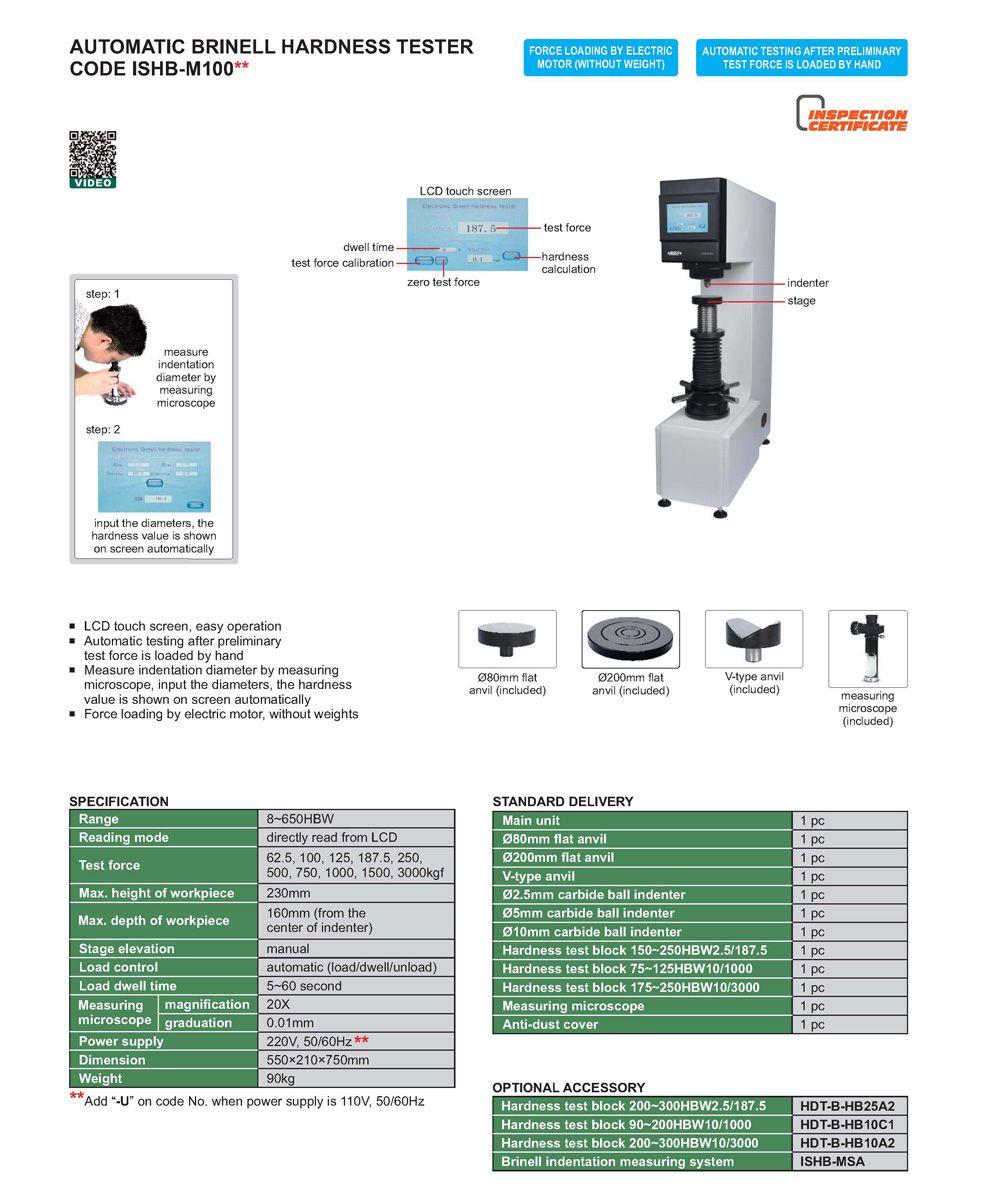

Reading mode: directly read from LCD
Test force: 62.5; 100; 125; 187.5; 250; 500; 750; 1000; 1500; 3000kgf
Max. height of workpiece: 230mm
Max. depth of workpiece: 160mm (from the center of indener)
Stage elevation: manual
Load control: automatic (load/dwell/unload)
Load dwell time: 5~60 sec
Measuring microscope:
- Magnification: 20X
- Resolution: 0.01mm
Power supply: 220V, 50/60Hz
Dimension: 550x210x750mm
Weight: 90kg
Optional accessory:
- Hardness test block 200~300HBW2.5/187.5
- Hardness test block 90~200HBW10/1000
- Hardness test block 200~300HBW10/3000
- Brinell indentation measuring system
Standard delivery:
- Main unit: 1pc
- Φ80mm flat anvil: 1pc
- Φ200mm flat anvil: 1pc
- V-type anvil: 1pc
- Φ2.5mm carbide ball indenter: 1pc
- Φ5mm carbide ball indenter: 1pc
- Φ10mm carbide ball indenter: 1pc
- Hardness test block 150~250HBW2.5/187.5: 1pc
- Hardness test block 75~125HBW10/1000: 1pc
- Hardness test block 175~250HBW10/3000: 1pc
- Measuring microscope: 1pc
- Anti-dust cover: 1pc
