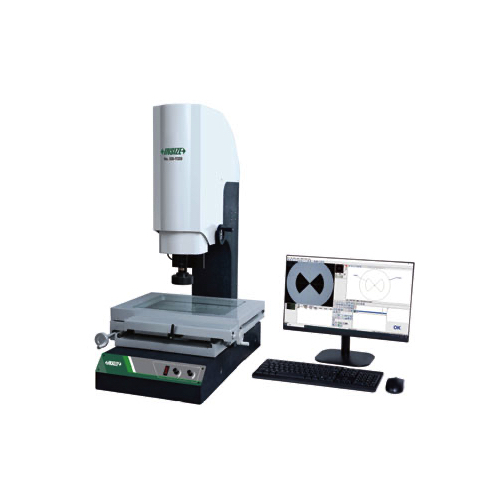

INSIZE ISD-Y430D Manual Vision Measuring Systems (Basic Type) (400×300×200mm, 0.7X~4.5X, motorized focus)

Measuring range (X×Y×Z): 400×300×200mm

Stage size: 606×466mm

Glass stage size: 450×350mm

Resolution of X/Y/Z axis: 1μm

Accuracy of X/Y axis: ≤(3+L/200)µm (L is the measuring length in mm)

Repeatability of X/Y axis: 2μm

Objective: 0.7X~4.5X (zoom)

View field (diagonal length): 1.0~6.6mm

Working distance: 92mm

Magnification: 37.2X~236.0X (on 21.5" monitor)

Camera: 1/2" color CCD, 1.3M pixel

Illumination: surface and contour with adjustable LED

Max. height of workpiece: 200mm

Max. weight of workpiece: 20kg

Operation system: Windows 10/11

Power supply: 220V, 50Hz

Dimension (L×W×H): 720×950×1020mm

Weight: 315kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Computer: 1 pc

Calibration glass chart: 1 pc

Clay: 1 pc

Anti-dust cover: 1 pc
