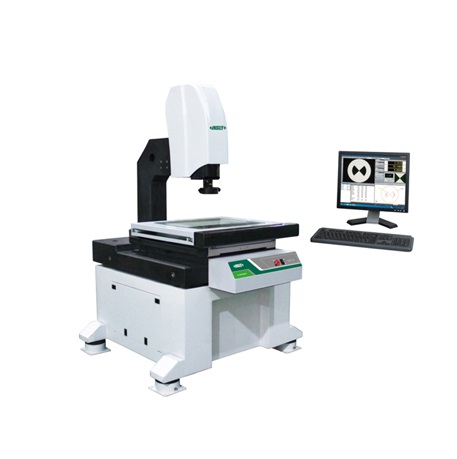

INSIZE ISD-V500HN CNC Vision Measuring Systems

Measuring Range (X x Y x Z):470x370x400mm

Stage Size: 786x636mm

Stage Glass Size: 570x470mm

Resolution of X/Y/Z Axis:0.5µm

Accuracy of X/Y/Z Axis: <=(2.5+L/100)µm (L is the measuring length in mm)

Repeatability of X/T Axis: 2µm

Objective:0.7X ~ 4.5X (zoom)

Workign Distance: 92mm

Magnification: 33X ~ 195X (on 19" monitor)

View field (diagonal length: 1.7-11.1mm

Matification: 20X-128X(on 19.5" monitor)

Camera: 1/2" color CCD, o.4M pixel

Illumination:

surface: coaxial Light programmable segmented ring fight

contour: adjustable LED light

Max workpiece height: 200mm

Max workpiece weight: 30kg

Operation system: Windows 7/10

Drive Method: Automatic

Power Supply: 220V, 50/60Hz

Dimension (L x W x H) : 1270x1200x2070mm

Weight: 900kg
