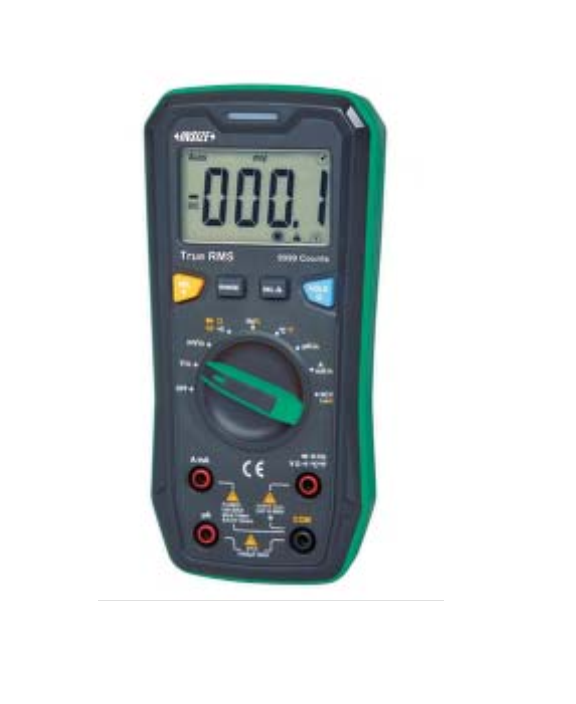

INSIZE 9219-KV220 Bluetooth Digital Multimeter (1000V, 10A, 100MΩ)

Function

DC Voltage:

9.999mV/99.99mV

999.9mV/9.999V/99.99V/999.9V

AC Voltage (40-400Hz)

9.999mV/99.99mV

999.9mV/9.999V/99.99V/999.9V

DC Current:

999.9μA

999.9mA/9.999A

AC Current (40-400Hz)

999.9μA

999.9mA/9.999A

Resistance:

999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ

9.999ΜΩ

99.99ΜΩ)

Capacitance

9.999nF

99.99nF/999.9nF/9.999μF/99.99μF/999.9μF

9.999mF

Frequency:

99.99HZ-9.999MHz

Temperature: -40~1000°C (-40~1832°F)

Duty cycle: 0.1%~99.9%

Diode test: open circuit voltage 3.3V, test current 1.5mA

Continuity check: <30Ω

Power supply: 3x1.5V AAA batteries

Dimension (LxWxH): 187*88*56mm

Weight: 400g
